Запчасти Case IH SPX3200B (036) - PISTONS AND CONNECTING RODS (10) - ENGINE

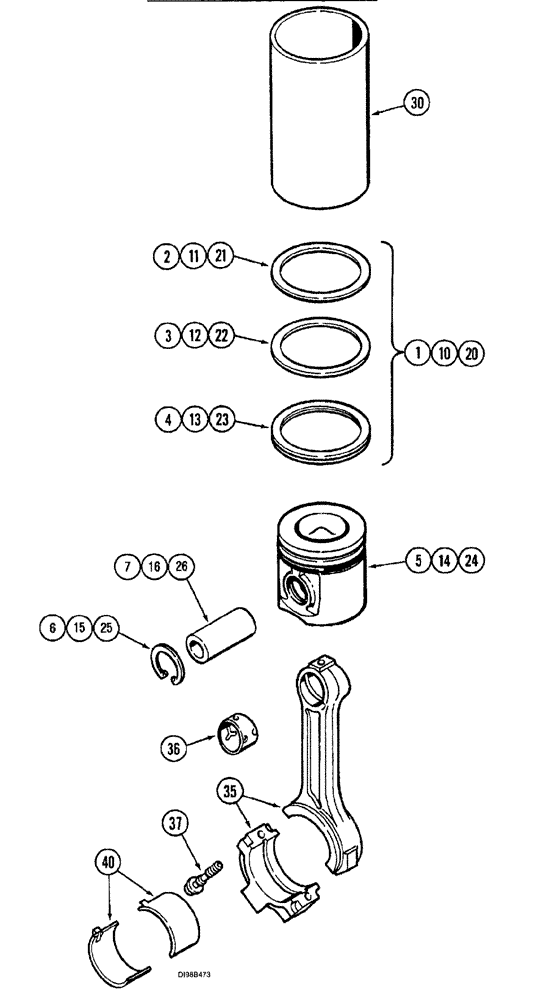

Схема запчастей Case IH SPX3200B - (036) - PISTONS AND CONNECTING RODS (10) - ENGINE

Артикул

Название

Примечание

Количество

0

87425544

KIT

Engine Overhaul, 6TA-590

6шт.

Consists of Refs. 1 - 6

1шт.

1

J802757

KIT

RING, set, standard

1шт.

Consists of Refs. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

RING, top

1шт.

3

NSS

NOT SOLD SEPARAT

RING, middle

1шт.

4

NSS

NOT SOLD SEPARAT

RING, bottom

1шт.

5

NSS

NOT SOLD SEPARAT

PISTON

1шт.

6

J901706

RING

2шт.

7

J919053

PISTON PIN

6шт.

J802758

KIT

PACKAGE, service, oversize 0.5 mm, 0.5 mm

6шт.

Consists of Refs. 10 - 15

1шт.

10

J802422

PISTON RING SET

RING, oversize 0.5 mm, 0.5 mm

1шт.

Consists of Refs. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

RING, top

1шт.

12

NSS

NOT SOLD SEPARAT

RING, middle

1шт.

13

NSS

NOT SOLD SEPARAT

RING, bottom

1шт.

14

NSS

NOT SOLD SEPARAT

PISTON

1шт.

15

J901706

RING

2шт.

16

J919053

PISTON PIN

12шт.

J802759

KIT

PACKAGE, service, 1.0 mm

6шт.

Consists of Refs. 20 - 25

1шт.

20

J802423

PISTON RING SET

oversize, 1.0 mm

1шт.

Consists of Refs. 21 - 23

1шт.

21

NSS

NOT SOLD SEPARAT

RING, top

1шт.

22

NSS

NOT SOLD SEPARAT

RING, middle

1шт.

23

NSS

NOT SOLD SEPARAT

RING, bottom

1шт.

24

NSS

NOT SOLD SEPARAT

PISTON

1шт.

25

J901706

RING

2шт.

26

J919053

PISTON PIN

6шт.

30

J904166

SLEEVE

1шт.

J942581

ROD, CONNECTING

ASSY.

6шт.

Consists of Refs. 35 - 37

1шт.

JR942581

REMAN-CONNECTING ROD

Assy

6шт.

JC901569

CORE-ROD CONNECTING

Core-Connecting Rod, Return Number, Connecting Rod

6шт.

84145405R

REMAN-CONNECTING ROD

SPX3200B (11/99-11/01), Reman For New PN J942581

6шт.

84145405C

CORE-ROD CONNECTING

Return Number

6шт.

35

NSS

NOT SOLD SEPARAT

ASSY., rod

1шт.

36

J941476

BUSHING

1шт.

37

J900919

BOLT,Flng, MJ11 x 1.25 x 59mm, Cl 12.9

BOLT, M11 X 59

2шт.

40

87425525

CRANKSHAFT BEARING

Kit - Upper and Lower Set, Standard, See Service Bulletin

6шт.

40

A77465

BEARING SET

Kit - Upper and Lower Set, Standard, See Service Bulletin

6шт.

40

A77466

BEARING SET

KIT - Upper and Lower Set, 0.25 mm Undersize, See Service Bulletin

6шт.

40

A77467

BEARING LINER

KIT - Upper and Lower Set, 0.5 mm Undersize, See Service Bulletin

6шт.

40

A77468

BEARING SET

KIT - Upper and Lower Set, 0.75 mm Undersize, See Service Bulletin

6шт.

40

A77469

BEARING SET

KIT - Upper and Lower Set, 1.0 mm Undersize, See Service Bulletin

6шт.

Выбрано товаров: 46
