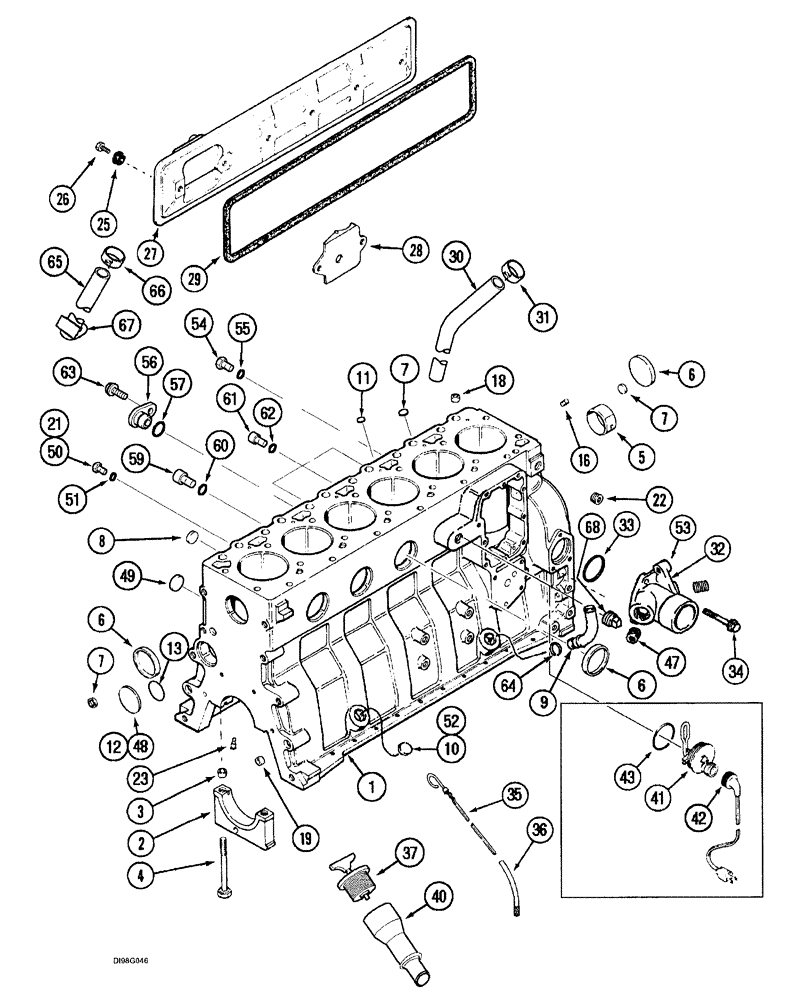

Запчасти Case IH SPX3200B (032) - CYLINDER BLOCK (10) - ENGINE

J933643

SKELETON ENGINE

ASSEMBLY, block, engine, short, 6 cyl.

1шт.

JR933643

REMAN-SHORT ENGINE

Assembly, block, engine, short, reman.

1шт.

6-590-SHBC

CORE-SHORT ENGINE

Block Assembly, Short Emission 6-590

1шт.

335865A1

BASIC ENGINE

6TA-590/P3000, pump

1шт.

See Note

1шт.

47465959R

REMAN-BASIC ENGINE

Remanufactured Basic Engine Assembly, assembly includes short block assembly, cylinder head, valve cover, front cover, oil pan, water pump, thermostat and gasket kit to transfer trim parts

1шт.

47465959C

CORE-BASIC ENGINE

Return Part Number

1шт.

6-590-LBC

CORE-ENGINE

Basic 6-590 Emission

1шт.

1

J933712

CYLINDER BLOCK

ASSY., stripped, includes 2-8, also order J933220 kit

1шт.

2

J903492

BEARING CAP

CAP

7шт.

3

J900068

BEARING WASHER

RING, 18 mm OD

14шт.

4

J927948

BOLT,Flng, MJ12 x 1.5H6H x 119mm, Cl 12.9

14шт.

5

BUSHING

1шт.

See Fig. 031

1шт.

6

A77782

PLUG

Expansion, 58 mm od

6шт.

7

J900956

PLUG

18 mm OD

3шт.

8

86625124

PLUG,Cup, 1", Stainless

4шт.

9

J903744

PIPE FITTING,22.42 mm ID x 28 mm OD x 90.2, 64 mm L

TUBE

4шт.

10

J920706

PLUG

22 mm

1шт.

J933220

PACKAGE,SERVICE

KIT, hardware

1шт.

Includes Refs. 11, 13 - 19, 23, 47 - 56, 63

1шт.

11

J900955

PLUG

DIPPERSTICK, 10 mm OD

2шт.

12

172599

PLUG,Exp, 2 3/8"

1шт.

13

J926047

O-RING,0.07" Thk x 2.239" ID

57 mm id

1шт.

16

J900257

PIN,10.01mm OD x 16mm L

10 mm x 16 mm long

2шт.

18

J902343

DOWEL

RING, 16 mm OD

2шт.

19

J900068

BEARING WASHER

RING, 18 mm OD

2шт.

21

NOT USED

1шт.

22

86625118

DRAIN PLUG,1/2" - 14 NPT

1шт.

23

J930139

NOZZLE CAP

6шт.

25

J900267

SEAL

4шт.

26

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

4шт.

27

J927913

COVER

1шт.

28

J907586

BAFFLE

1шт.

29

J928832

GASKET

SEAL

1шт.

30

246953A1

HOSE,19.05 mm ID x 620.00 mm

Ventilation

1шт.

31

J904230

CLAMP,25.4mm

1шт.

32

J916625

CONNECTING BLOCK

CONNECTOR, inlet, water

1шт.

33

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

O-RING, 50 mm ID

1шт.

34

J902460

FLANGE BOLT,Hex, M10 x 25mm, Cl 10.9

3шт.

35

J936142

DIPSTICK

1шт.

36

J935617

TUBE,9.52 mm OD x 139, 63.7 mm L

1шт.

37

A77424

FILLER CAP

Filler Cap

1шт.

40

J935619

TUBE,22.42-30.43 mm OD x 190 mm L

ASSY., filler, oil

1шт.

196803A1

KIT

coolant heating, 120V, 750W

1шт.

Consists of Refs. 41 - 43

1шт.

309651A1

KIT

block heater, 120V, 750W

1шт.

Consists of Refs. 41A, 42A

1шт.

41

J916127

RESISTOR

ELEMENT

1шт.

42

87105748

ELECTRIC CABLE,120V, 15A

1829 mm (72") (Engine Block Heater, 120 Volt)

1шт.

43

J910517

O-RING

1шт.

47

444704

PLUG,Hex Soc, 1/2"-14

1шт.

48

172599

PLUG,Exp, 2 3/8"

1шт.

49

J900958

PLUG

32 mm OD

1шт.

50

J678923

PLUG,M10 x 1

ASSY.

3шт.

Includes Ref. 51

1шт.

51

86625087

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

52

J920706

PLUG

22 mm

1шт.

53

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

1шт.

54

J678921

PLUG

ASSY.

1шт.

Includes Ref. 55

1шт.

55

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

87425544

KIT

Engine Overhaul, 6TA-590

1шт.

56

J932296

PLUG

ASSY.

1шт.

Includes Ref. 57

1шт.

57

J330478

O-RING,0.07" Thk x 0.676" ID

SEAL

1шт.

59

J678921

PLUG

M14

1шт.

Includes Ref. 60

1шт.

60

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

61

233426A1

PLUG,M10 x 1 ORB

3шт.

Includes Ref. 62

1шт.

62

84432614

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

3шт.

63

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

64

J931824

O-RING,0.07" Thk x 0.739" ID, -18, Cl 7, 75 Duro

O-RING, M8 X 16

1шт.

65

J918614

TUBE,435.00 mm

If not Removed from Engine or Replace with Items 30, 31.

1шт.

66

J904230

CLAMP,25.4mm

SPRING, if not removed from engine or replace with items 30, 31.

1шт.

67

J928989

CLIP

If not removed from engine or replace with items 30, 31.

1шт.

68

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

1шт.
