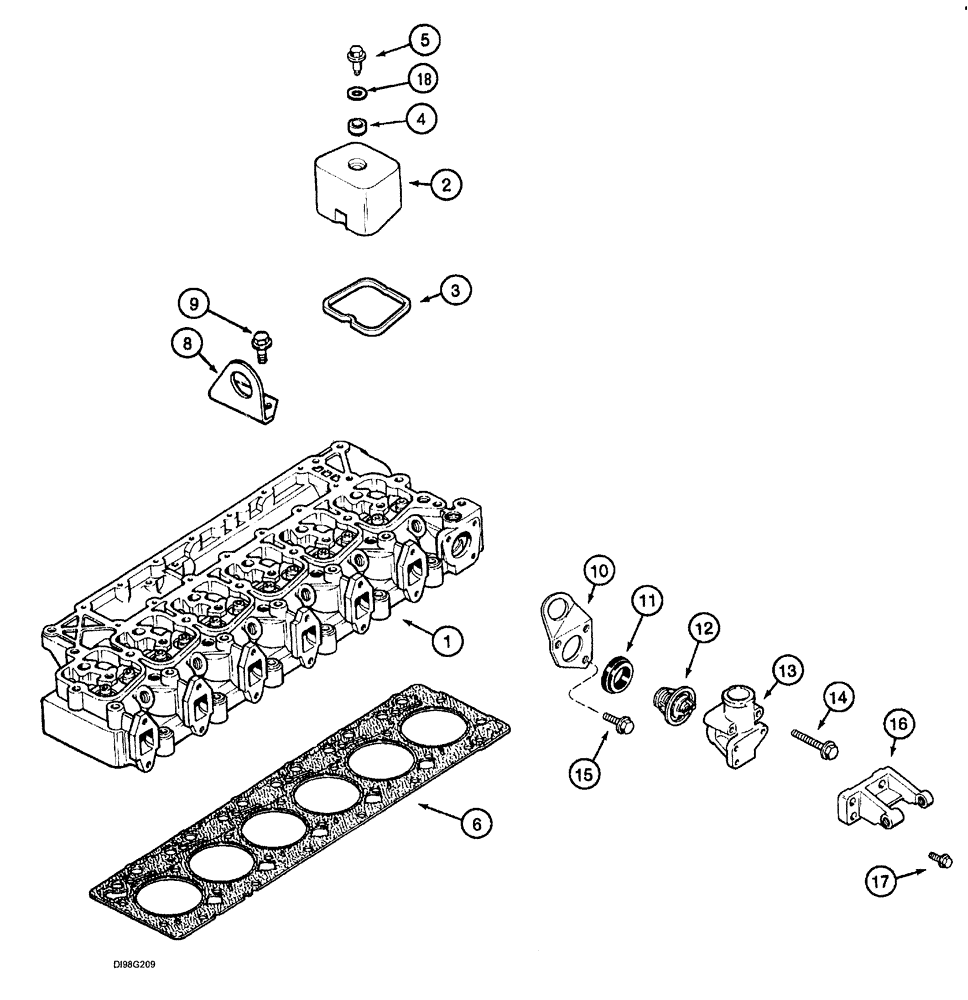

Запчасти Case IH SPX3200B (029) - CYLINDER HEAD AND GASKETS (10) - ENGINE

1

NSS

NOT SOLD SEPARAT

HEAD, cylinder

1шт.

See Fig. 030

1шт.

2

J928404

COVER

6шт.

3

J930906

GASKET

SEAL

6шт.

4

J928406

ISOLATOR

6шт.

5

J907049

BOLT,Hex

M8 X 21

6шт.

6

J283335

GASKET,2.32mm Thk

HEAD, cylinder, standard, 0.25 mm

1шт.

6

J283337

GASKET,2.24mm Thk

HEAD, cylinder, oversize, 0.25 mm

1шт.

6

J283339

GASKET

HEAD, cylinder, oversize, 0.25 mm

1шт.

8

J917599

SUPPORT

BRACKET, rear

1шт.

9

9670066

FLANGE BOLT,Hex, M12 x 30mm, Cl 8.8

2шт.

10

J903757

BRACKET

FRONT

1шт.

A77736

THERMOSTAT

Kit, Coolant

1шт.

Includes Refs. 11, 12

1шт.

11

J923331

GASKET

SEAL

1шт.

12

NSS

NOT SOLD SEPARAT

THERMOSTAT

1шт.

13

J914409

HOUSING

THERMOSTAT

1шт.

14

86624974

BOLT,Hvy Hex, M8 x 70mm, Cl 8.8

2шт.

15

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

1шт.

16

J923387

SUPPORT

ALTERNATOR

1шт.

17

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

3шт.

18

NOT USED

1шт.
