(186) - EXTERIOR DECALS-GRAPHICS

Запчасти Case IH SPX3200B (186) - EXTERIOR DECALS-GRAPHICS (90) - PLATFORM, CAB, BODYWORK AND DECALS

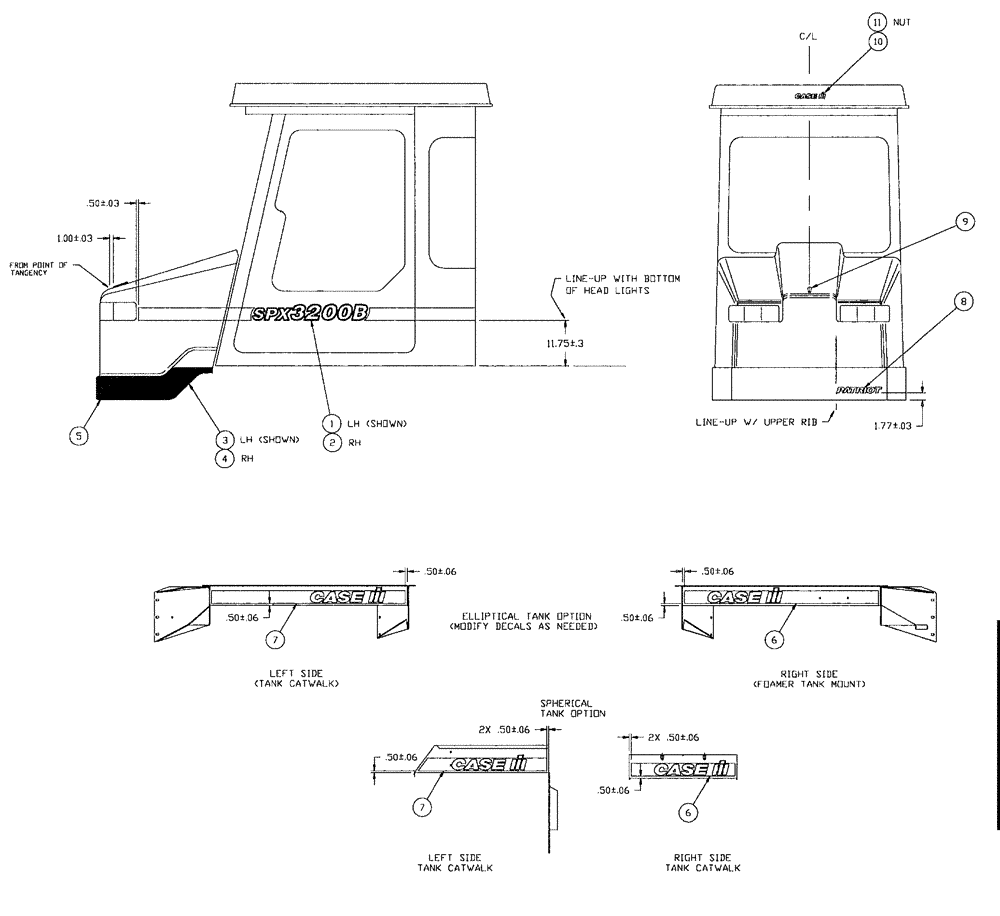

Схема запчастей Case IH SPX3200B - (186) - EXTERIOR DECALS-GRAPHICS (90) - PLATFORM, CAB, BODYWORK AND DECALS
6
4
7
3
8
6
10
9
5
2
7
11
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN315816

DECAL

SPX3200B, side, LH

1шт.

2

BN315817

DECAL

SPX3200B, side, RH

1шт.

3

336622A1

DECAL

LH, front hood

1шт.

4

336623A1

DECAL

RH, front hood

1шт.

5

336625A1

DECAL

mid stripe, front hood

1шт.

6

336615A1

DECAL

RH rear stripe

1шт.

7

336613A1

DECAL

LH rear stripe

1шт.

8

337687A1

DECAL

emblem, "Patriot"

1шт.

*9

1968108C2

TRIM

Trim, Hood Sight

1шт.

*10

186882A1

EMBLEM CASE/IH

cast nameplate

1шт.

*11

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

*Part available only through Case's North American Parts Organization (NAPO).

1шт.
