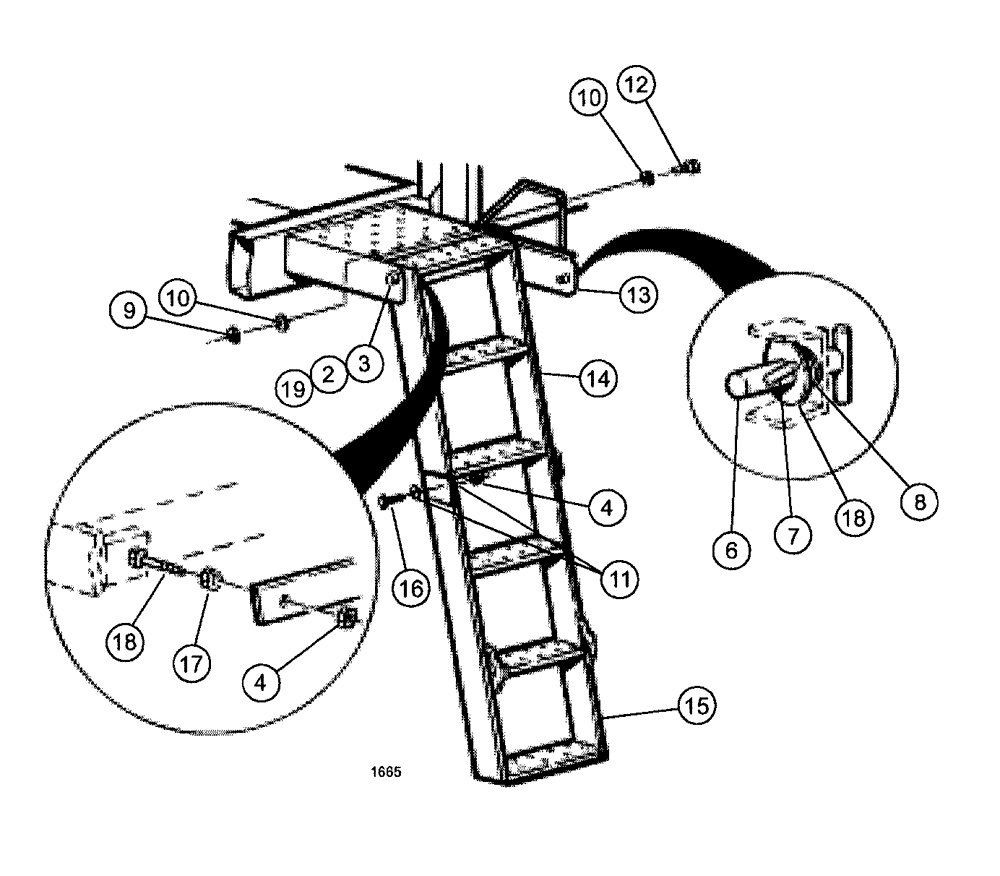

Запчасти Case IH SPX3200B (069) - LADDER, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

2

BN25138

SHAFT

1" x 17.25"

1шт.

3

BN50605

PIN, ROLL

7/32 X 1 1/2

1шт.

4

86992215

LOCK NUT,1/2"-13, GC

4шт.

5

BN50973

BOLT

1/2"-13 x 2.75, HH, G5

2шт.

6

BN25257

PIN

Side Ladder

1шт.

7

BN31444

PIN, ROLL

1/4 x 1 1/2

1шт.

Roll pin #7 must be in second hole to engage ladder stop.

1шт.

8

BN31937

SPRING

Compression, .905 x .765 2

1шт.

9

BN50061

LOCK NUT

3/8"-16, UNC, Whiz

4шт.

10

BN50145

WASHER

3/8, G5

4шт.

11

BN50166

WASHER

7/8 OD x 1/2 ID x 14 ga.

6шт.

12

BN50367

BOLT

3/8"-16 x 1", G5

4шт.

13

BN63581

LATCH

Weldment Ladder

1шт.

14

BN63582

LADDER

Bi-Fold Top Weldment

1шт.

15

BN312542

LADDER

bi-fold, 3 step

1шт.

16

BN50894

BOLT

1/2"-13 x 2.5, HH, 5, PL

2шт.

17

BN50072

NUT

Hex, 1/2"-13, G5

2шт.

18

BN50157

WASHER

3/4, G5

2шт.

19

BN50168

WASHER,25.4mm ID x 38.1mm OD x 3.57mm Thk

1" ID x 1.5 OD x 10 Ga

1шт.
