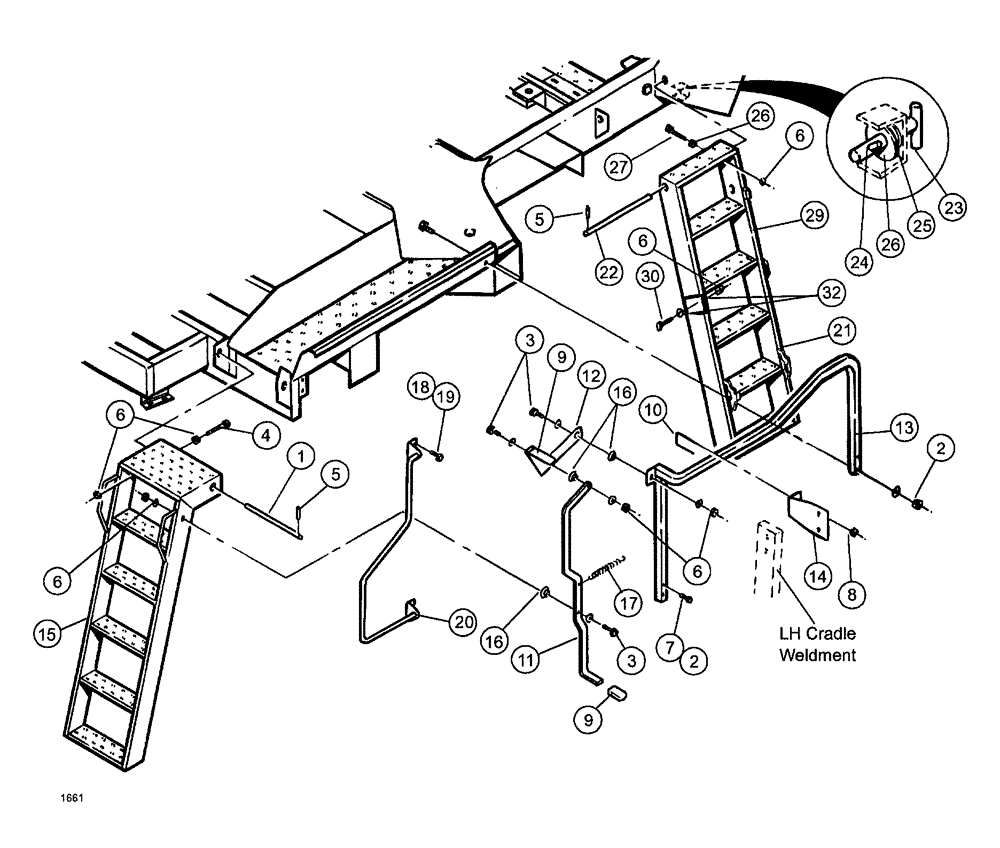

Запчасти Case IH SPX3200B (068) - LADDERS, LH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN25138

SHAFT

1" x 17.25"

1шт.

2

BN50056

LOCK NUT

5/16"-18, Whiz

4шт.

3

50283

BOLT Hex, 1/2"-13 x 1 1/4", G5, Full Thd

3шт.

4

50286

BOLT Hex, 1/2"-13 x 1 3/4", G5

2шт.

5

BN50605

PIN, ROLL

7/32 X 1 1/2

2шт.

6

86992215

LOCK NUT,1/2"-13, GC

11шт.

7

50842

BOLT Hex, 5/16"-18 x 1 1/2", G5

4шт.

8

280129

NUT,1/4"-20

2шт.

9

BN67835

GRIP

HANDLE

2шт.

10

BN23149

U-BOLT

1/4"-20, Square, 1.1" id x 2" Long

1шт.

11

BN307637

HANDLE

LINK, ladder, lift

1шт.

12

BN68064

LINKAGE

WELDMENT, linkage, upper

1шт.

13

BN68060

RAIL

1шт.

14

BN68073

BRACKET

Rail Stiffener

1шт.

15

BN311242

LADDER

Weldment, See fig. 101

1шт.

16

BN68133

BUSHING

6шт.

17

BN71134

SPRING

Tension, 1" x 5"

1шт.

18

BN50131

LOCK NUT

3/8-16, CTR, PL

4шт.

19

BN50251

BOLT

3/8"-16 x 3/4, HH, G5, PL

4шт.

20

BN67722

HANDLE

grab, front ladder

1шт.

21

BN312542

LADDER

bi-fold, 3 step

1шт.

22

BN24557

PIN

1" CFRD x 18.75

1шт.

23

BN25257

PIN

Side Ladder

1шт.

24

BN31444

PIN, ROLL

1/4 x 1 1/2

1шт.

25

BN31937

SPRING

Compression, .905 x .765 2

1шт.

26

BN50157

WASHER

3/4, G5

1шт.

27

50288

BOLT Hex, 1/2"-13 x 2", G5

2шт.

29

BN63582

LADDER

Bi-Fold Top Weldment

1шт.

30

BN50894

BOLT

1/2"-13 x 2.5, HH, 5, PL

2шт.

31

BN50168

WASHER,25.4mm ID x 38.1mm OD x 3.57mm Thk

1" ID x 1.5 OD x 10 Ga

1шт.

32

BN50166

WASHER

7/8 OD x 1/2 ID x 14 ga.

6шт.
