(061) - FUEL TANKHOOD GROUP

Запчасти Case IH SPX3200B (061) - FUEL TANKHOOD GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS

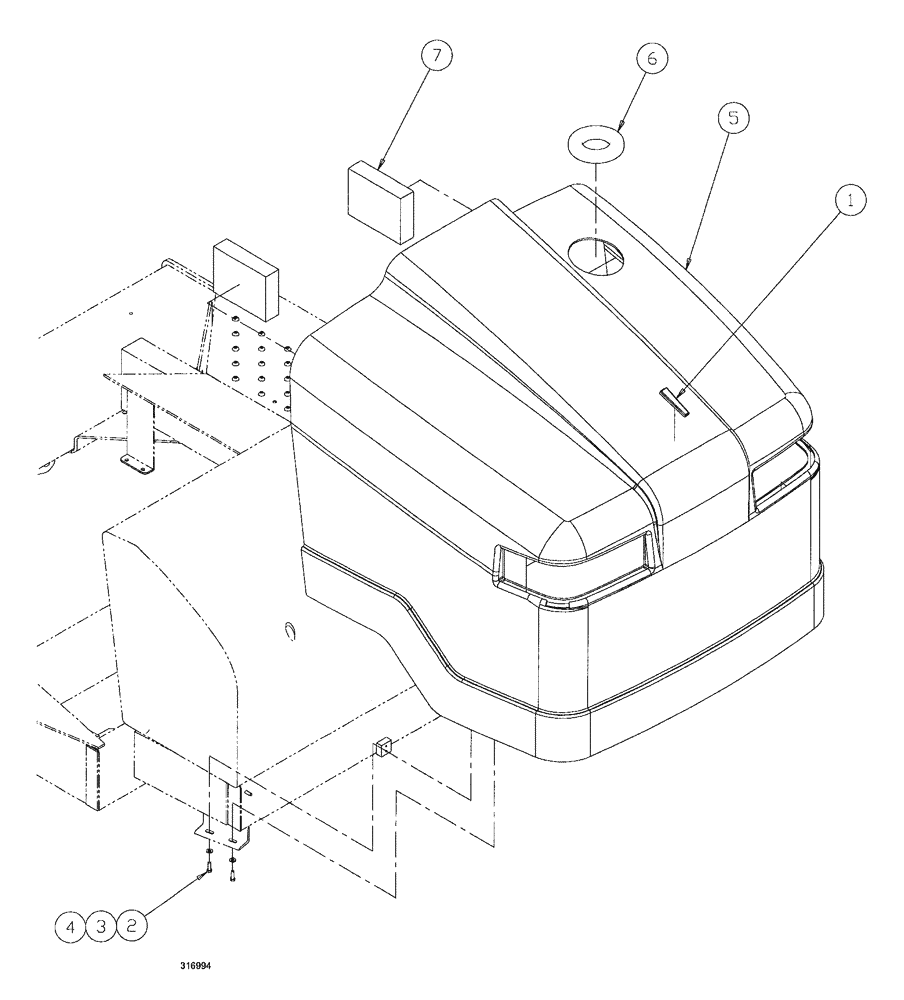

Схема запчастей Case IH SPX3200B - (061) - FUEL TANKHOOD GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS
7
1
3
5
4
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

*1

1968108C2

TRIM

Trim, Hood Sight

1шт.

2

BN300393

NUT

M10-1.5, FLN, 10.9

4шт.

3

BN300499

WASHER,M10, 10.9

8шт.

4

86624978

BOLT,Hex, M10 x 35mm, Cl 10.9, Full Thd

4шт.

5

BN315078

HOOD

TANK, fuel

1шт.

6

BN316498

GROMMET

hood

1шт.

7

86986299

FOAM

Hood Side Supplemental, 3XXX

2шт.

*Part available only through Case's North American Parts Organization (NAPO).

1шт.
