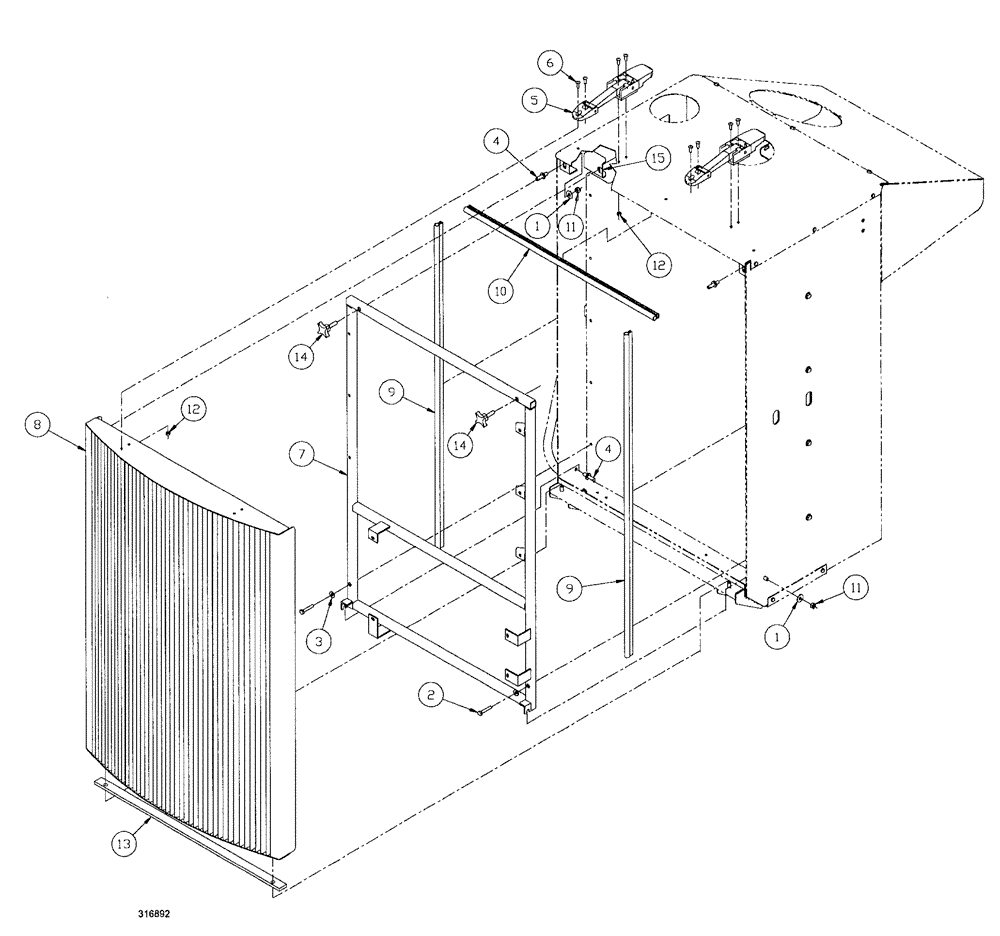

Запчасти Case IH SPX3200B (057) - GRILLE, A/C MOUNT GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN300175

WASHER

3/8", G8

4шт.

2

BN301307

BOLT,Hex, M8 x 45, 8.8

2шт.

3

BN300497

WASHER,M8, 10.9

2шт.

4

BN310283

PIN

3/8 with .75 shoulder

4шт.

5

BN310732

LATCH

Hood, 543

2шт.

6

BN311112

RIVET

1/4"-20 x .75, BHCS

8шт.

7

BN316769

FRAME

mount, A/C con/cooler

1шт.

8

BN316792

GRILLE

rad

1шт.

9

BN316801

SEAL

side, grille

2шт.

10

BN316802

RUBBER SEAL,817.88mm L

GRILLE, top

1шт.

11

BN50756

NUT

3/8-16, NLN, G5

4шт.

12

BN50796

NUT

1/4-20, NLN, G5

8шт.

13

BN316982

FOAM

grille, lower

1шт.

14

BN317152

KNOB

3/8-16 x 1.5, malestud

2шт.

15

BN68832

CLIP

J-Type, 3/8-16

2шт.
