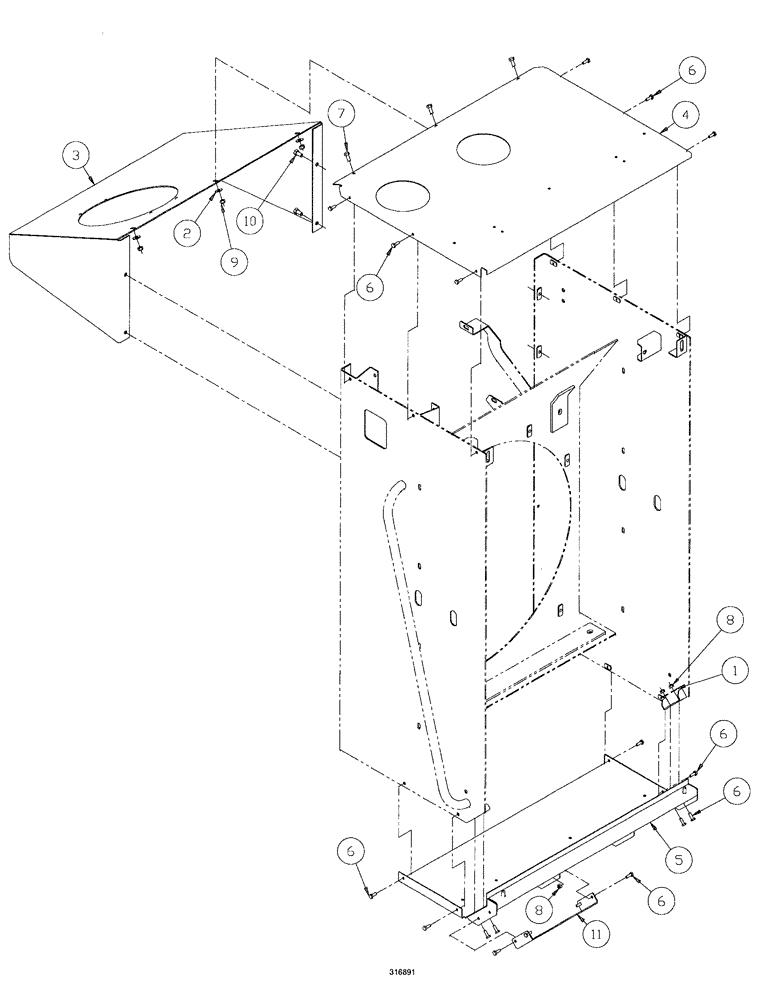

Запчасти Case IH SPX3200B (056) - RADIATOR COVERS GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

86632587

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

2

86637953

WASHER,0.34" ID x 0.69" OD x 0.09" Thk

3шт.

3

BN316791

HOOD

tank, rad/oil

1шт.

4

BN316823

COVER

hood, radiator, top

1шт.

5

BN316828

COVER

rad, bottom

1шт.

6

BN50211

BOLT

1/4"-20 x .75, HH, G5

8шт.

7

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

8

BN50796

NUT

1/4-20, NLN, G5

18шт.

9

BN55360

LOCK NUT

5/16"-18, NLN, G5

3шт.

10

BN50251

BOLT

3/8"-16 x 3/4, HH, G5

4шт.

11

BN317237

BRACKET

mount, hyd hoses

1шт.
