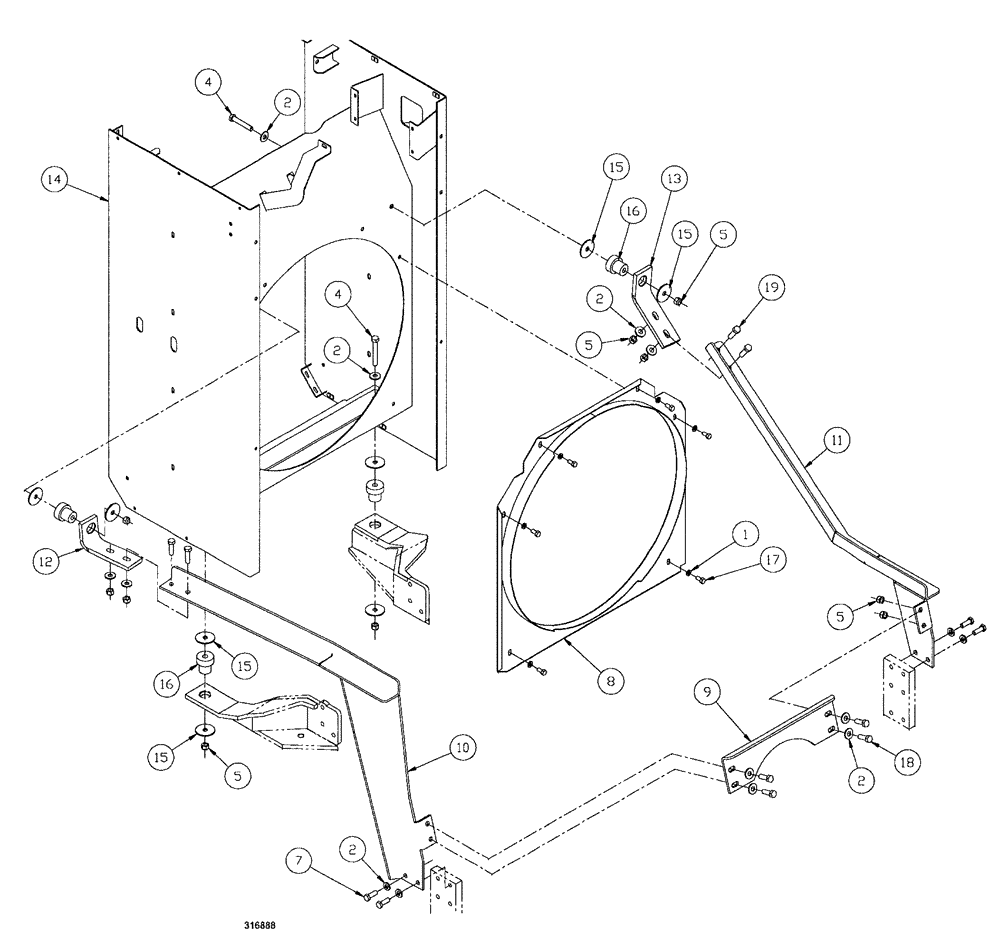

Запчасти Case IH SPX3200B (053) - SHROUD MOUNTING GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN300175

WASHER

3/8", G8

6шт.

2

BN300500

WASHER,M12, 10.9

16шт.

4

412085

BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9

4шт.

5

100038

NUT,M12 x 1.75, Cl 8

12шт.

*7

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

8

BN316752

SHROUD

fan

1шт.

9

BN316778

BRACE

support, radiator

1шт.

10

BN316779

SUPPORT

radiator, front

1шт.

11

BN318124

SUPPORT

radiator, rear

1шт.

12

BN318069

BRACE

radiator, front

1шт.

13

BN318070

BRACE

radiator, rear

1шт.

14

BN318687

SHROUD

radiator

1шт.

15

BN316870

WASHER

2.25 x 0.52 x 7 GA, 304 SS

8шт.

*16

700707039

RUBBER MOUNTING

Isolator

4шт.

17

BN50251

BOLT

3/8"-16 x 3/4, HH, G5

6шт.

18

626-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 10.9, Full Thd

4шт.

19

86639031

BOLT,Hex, M12 x 45mm, Cl 10.9, Full Thd

4шт.

*Part available only through Case's North American Parts Organization (NAPO).
