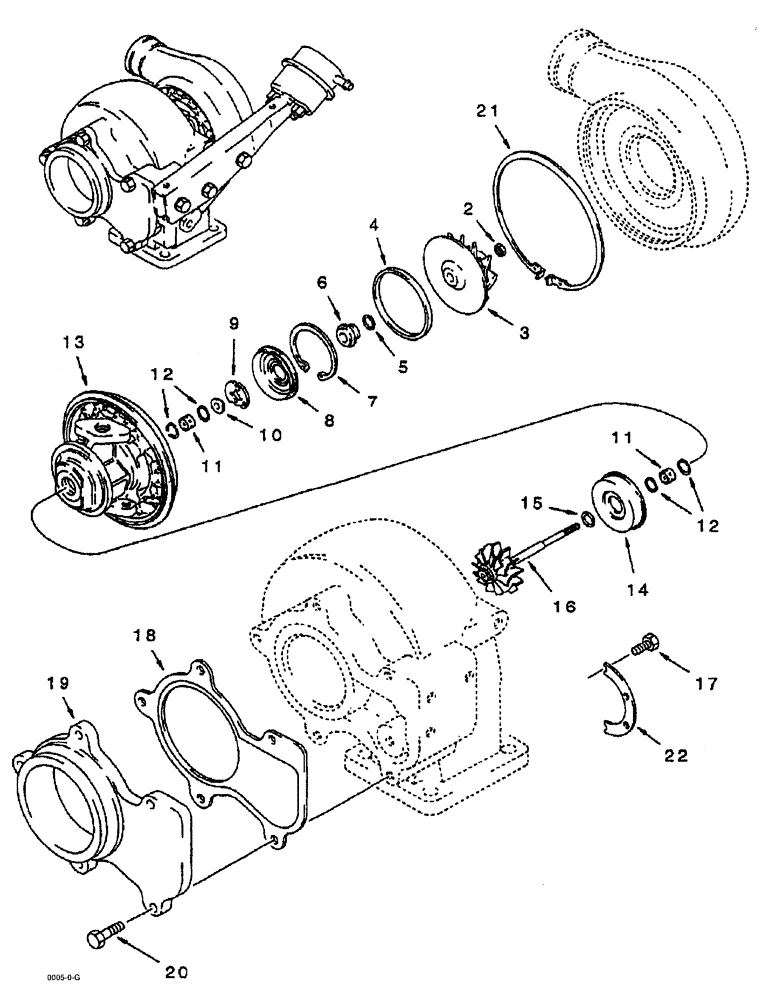

Запчасти Case IH SPX3200B (025) - TURBOCHARGER (10) - ENGINE

1

J802697

KIT

turbocharger with gaskets

1шт.

1

JR802697

REMAN-TURBOCHARGER

KIT-reman T/C w/ gaskets, incl JR536971 reman T/C and 1 each J919369 T/C mtg gasket and J928919 turbo oil drain tube gasket, not shown.

1шт.

1

JC536327

CORE-TURBOCHARGER

Return Number - use this P/N to return T/C core for credit when using a reman assy.

1шт.

See Fig. 026 for the remainder of the turbocharger assembly.

1шт.

Includes new T/C assy and one each of J709861 T/C mtg gasket and J519807 turbo oil drain tube gasket. Not shown.

1шт.

2

NSS

NOT SOLD SEPARAT

NUT, lock

1шт.

3

NSS

NOT SOLD SEPARAT

IMPELLER

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING

1шт.

5

NSS

NOT SOLD SEPARAT

RING, seal

1шт.

6

NSS

NOT SOLD SEPARAT

SLINGER

1шт.

7

NSS

NOT SOLD SEPARAT

RING, retaining

1шт.

8

NSS

NOT SOLD SEPARAT

BAFFLE

1шт.

9

NSS

NOT SOLD SEPARAT

BEARING, thrust

1шт.

10

NSS

NOT SOLD SEPARAT

COLLAR

1шт.

11

NSS

NOT SOLD SEPARAT

BEARING, roller

2шт.

12

NSS

NOT SOLD SEPARAT

RING, retaining

4шт.

13

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

14

NSS

NOT SOLD SEPARAT

SHIELD

1шт.

15

NSS

NOT SOLD SEPARAT

RING, seal

1шт.

16

NSS

NOT SOLD SEPARAT

ASSY., rotor

1шт.

17

J759917

SET SCREW

4шт.

18

J535001

GASKET,0.25mm Thk

ADAPTER

1шт.

19

J527759

ADAPTER

CONNECTION

1шт.

20

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

5шт.

21

J533163

SNAP RING

RETAINING

1шт.

22

J534309

PLATE

CLAMPING

2шт.

J575169

REPAIR KIT

KIT, turbocharger, repair, consists of: 2,4,5,7 - 9,11,12,15,17)

1шт.
