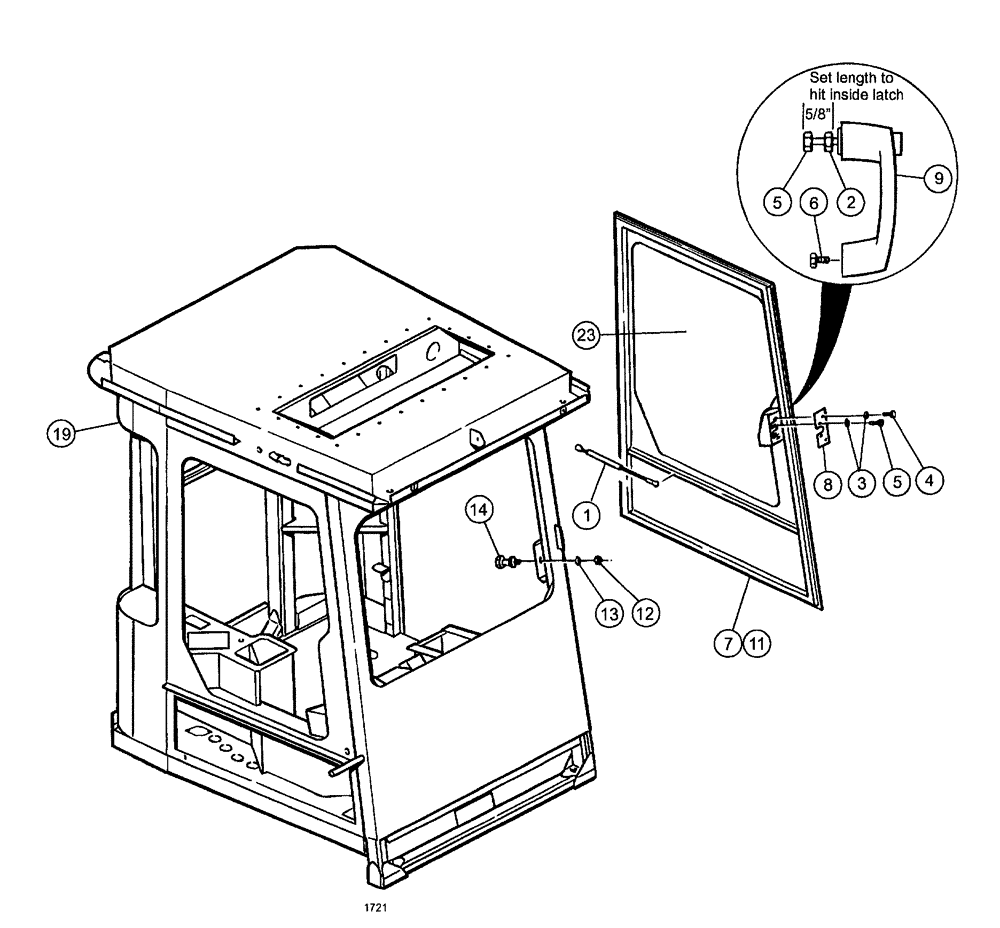

Запчасти Case IH SPX3200B (009) - DOOR AND STRIKER ASSEMBLIES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN29434

GAS STRUT

Cylinder Kit - Charged - Door (Complete)

1шт.

BN29553A

BALL JOINT

Stud, 13 mm Dia 5/16"-18

2шт.

§ indicates service parts for above ref. number

1шт.

BN24120

CLIP, SPRING

Gas Cylinder

2шт.

§ indicates service parts for above ref. number

1шт.

2

BN50053

NUT

Hex, 1/4"-20, G5

1шт.

3

BN50138

WASHER,1/4", SS

4шт.

4

BN50211

BOLT

1/4"-20 x .75, HH, G5, PL

2шт.

5

50214

BOLT Hex, 1/4"-20 x 1", G5

3шт.

6

120100

BOLT,M6 x 20mm, Cl 8.8

3шт.

7

BN66026

DOOR

1шт.

8

BN66103

LATCH

door, two rotor

1шт.

+

BN67951

CAP

Vinyl, .060 x .437 x 1.5

1шт.

+ Indicates associated part

1шт.

9

BN66106

HANDLE

DOOR, outside

1шт.

+

BN303475

DOOR LOCK KEY

set of 2

1шт.

+ Indicates associated part

1шт.

11

BN67957

DOOR SEAL

clip on, 190"

1шт.

12

BN50114

NUT

7/16"-14 Hex, G5

1шт.

13

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

2шт.

14

BN66109

CATCH

door, striker

1шт.
