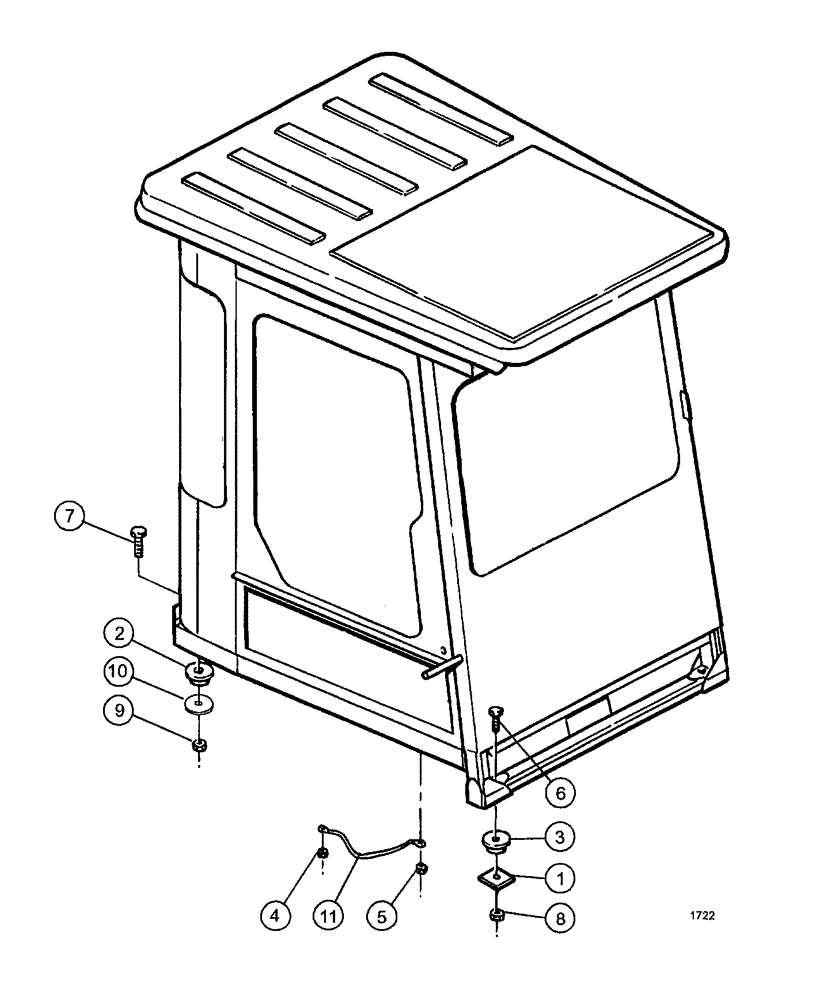

Запчасти Case IH SPX3200B (008) - CAB MOUNTING HARDWARE PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN316870

WASHER

2.25 x 0.52 x 7 GA, 304 SS

2шт.

2

BN29242

ISOLATOR

Rubber 3/4" Bore

2шт.

3

BN29243

ISOLATOR

Rubber 1/2" Bore

2шт.

*4

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

5

BN50061

LOCK NUT

3/8"-16, G5, Whiz

1шт.

6

50792

BOLT Hex, 1/2"-13 x 5", G8

2шт.

7

BN50988

BOLT

HH, 3/4"-10 x 3.5, G8

2шт.

8

BN50998

LOCK NUT

1/2 - 13 TOP, 8, PL

2шт.

9

BN50999

LOCK NUT

3/4 - 10 TOP, 8, PL

2шт.

10

BN63818

WASHER,20.57mm ID x 69.85mm OD x 4.76mm Thk

7 GA 304 .81 x 2.75

4шт.

11

BN69830

GROUND CABLE

Chassis

2шт.

ns

BN53812

STRAP

21.5" Plastic Tie-B

3шт.

ns

BN570007

STRAP

Black, 14-1/2" Long

100шт.
