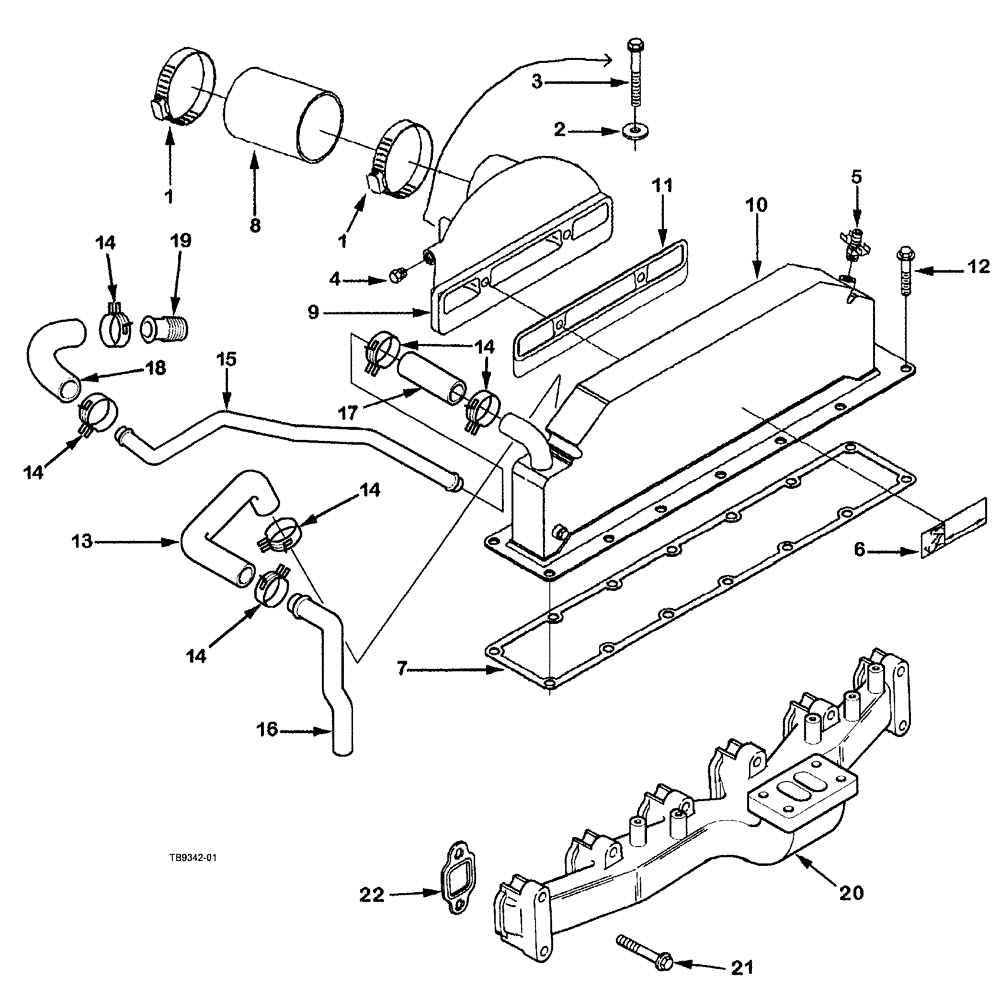

Запчасти Case IH SPX3200B (023) - MANIFOLDS (10) - ENGINE

1

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

1шт.

2

87015284

WASHER,8.8mm ID x 21.5mm OD x 2.5mm Thk

6шт.

3

J930837

FLANGE BOLT,Hex, M8 x 1.25 x 50mm

BOLT, hex, M8 X 1.25 X 50

12шт.

4

J906619

PLUG,1/8" - 27

pipe, 1/8-27 hex socket

1шт.

5

J909394

COCK, DRAIN

BLEED, air

1шт.

6

J910778

DECAL

PROCEDURE, engine fill

1шт.

7

J931347

GASKET

COVER, int. manifold

1шт.

8

J916437

HOSE

Plain

14шт.

9

J928502

CONNECTOR, ELEC

CONNECTOR CROSSOVER, air

1шт.

10

J928503

AFTERCOOLER

AFTER

1шт.

11

J930426

GASKET

CROSSOVER, air

1шт.

12

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

1шт.

13

J928492

TUBE

HOSE

1шт.

14

J918163

CLIP

CLAMP

6шт.

15

J927956

TUBE,19.05 mm OD x 473.6 mm L

SUPPLY

1шт.

16

J934170

TUBE,0.75" OD

ASSY., drain

1шт.

17

J918611

HOSE,18.50 mm ID x 63.00 mm

1шт.

18

J918607

HOSE,43.20 mm

1шт.

19

J907167

SPLINED COUPLING

1шт.

20

J931745

MANIFOLD

EXHAUST

1шт.

21

854-10065

BOLT,Hvy Hex, M10 x 65mm, Cl 10.9

12шт.

22

J927154

GASKET,0.38mm Thk

SEAL

6шт.
