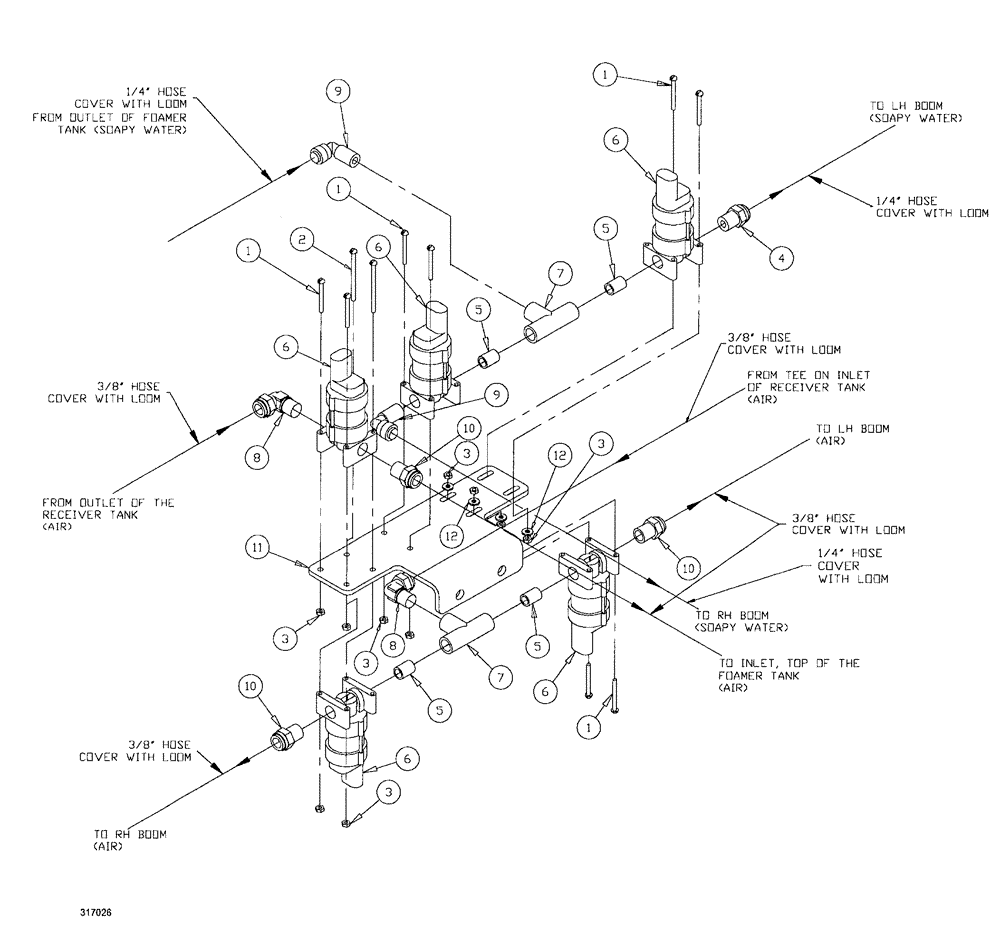

Запчасти Case IH SPX3200B (176) - SOLENOID VALVES GROUP (78) - SPRAYING

1

BN317051

BOLT

6-32 x 1 .25"

8шт.

2

BN317052

BOLT

6-32 x 2"

2шт.

3

BN317053

LOCK NUT

6-32, nylon lock

10шт.

4

BN2399401

ADAPTER

Male, 1/4" Tube

1шт.

5

BN1420036

NIPPLE

1/4" Close SS

4шт.

Part only available through Case's North American Parts Organization (NAPO).

1шт.

6

BN307938

VALVE

SOLENOID, 1/4 NPT

5шт.

7

BN2011315

TEE

Pipe 1/4" SS

2шт.

8

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

2шт.

9

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

10

BN2399403

ADAPTER

1/4" MPT x 3/8" OD Tube, Push Lock Fitting

3шт.

11

BN317029

BRACKET

valve, solenoids

1шт.

12

86511189

WASHER,0.16" ID x 0.38" OD x 0.05" Thk

4шт.
