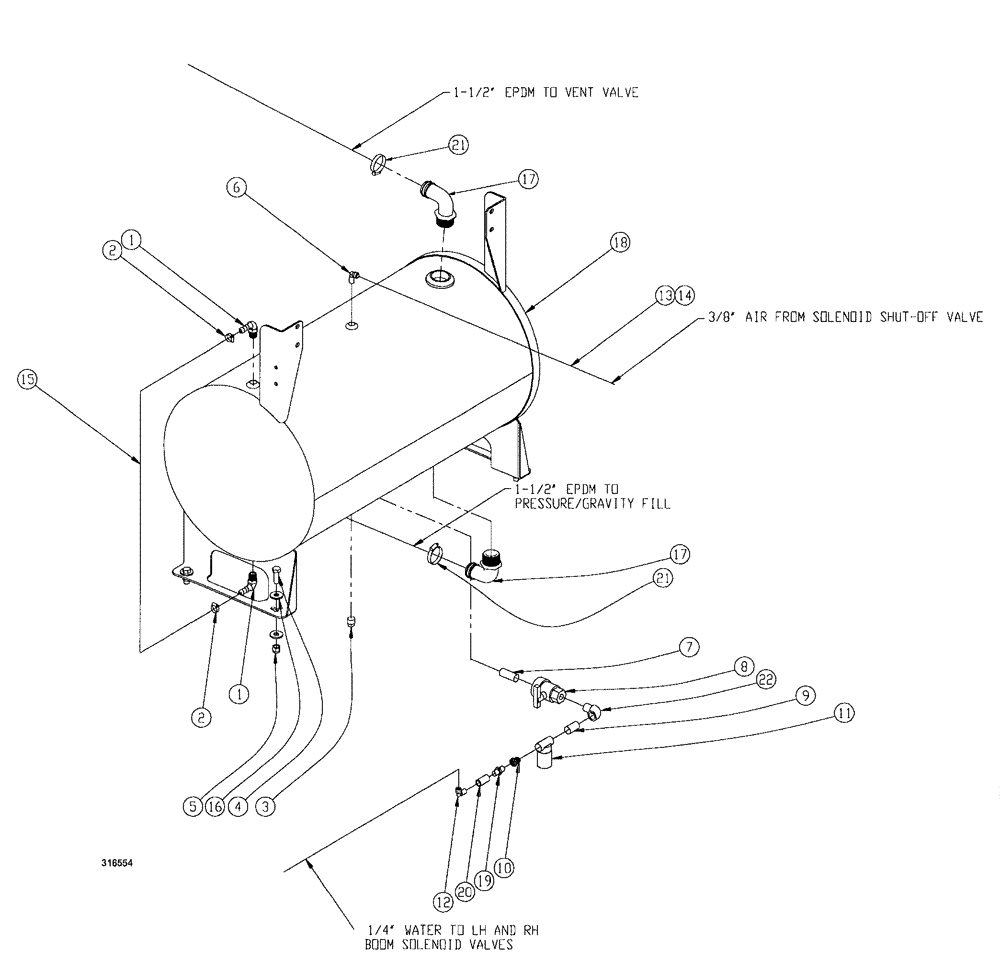

Запчасти Case IH SPX3200B (175) - FOAMER PARTS GROUP (78) - SPRAYING

1

BN73511

FITTING

90° 1/2" Female NPT x 1/2" Male NPT

2шт.

2

BN75906

CLAMP

hose, adj., 3/8 to 1/2, S

2шт.

3

BN313209

PLUG

1/2 NPT, SQ HD, SS

1шт.

4

BN50593

BOLT,1/2"-13 x 1-1/2", Stainless Steel

4шт.

5

BN50998

LOCK NUT

1/2-13, TOP, 8, PL

4шт.

6

BN2399411

ADAPTER

Elbow, 1/4" MPT x 3/8" OD Tube, Push Lock Fitting

1шт.

7

BN73112

NIPPLE, LUBE

NIPPLE 1/2" x 2" SS

1шт.

8

BN311100

VALVE

ball 1/2" poly

1шт.

9

BN73513

NIPPLE, LUBE

NIPPLE 1/2 NPT, poly

1шт.

10

BN304521

REDUCER

1/2 x 1/4 Red, Poly

1шт.

11

BN85373

FILTER

1/2

1шт.

12

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

1шт.

13

BN316552

LOOM

black, 1/4" x 120"

1шт.

14

BN316551

TUBE

black, 3/8" x 120"

1шт.

15

BN22497

HOSE,0.50" ID x 25.00"

clear

1шт.

16

BN2392395

WASHER

flat 1/2 SS

8шт.

17

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

2шт.

18

BN316532

TANK

marker, foam

1шт.

19

BN307985

VALVE

check, 1-2.5 CRK, 1/4 P

1шт.

20

BN73015

COUPLING

1/4" NPT SS Full

1шт.

21

BN2293386

CLAMP

hose H28 SS

2шт.

22

BN306481

ELBOW

1/2" SS 90° STR.

1шт.
