(174) - AIR TANK/SOLENOID GROUP

Запчасти Case IH SPX3200B (174) - AIR TANK/SOLENOID GROUP (78) - SPRAYING

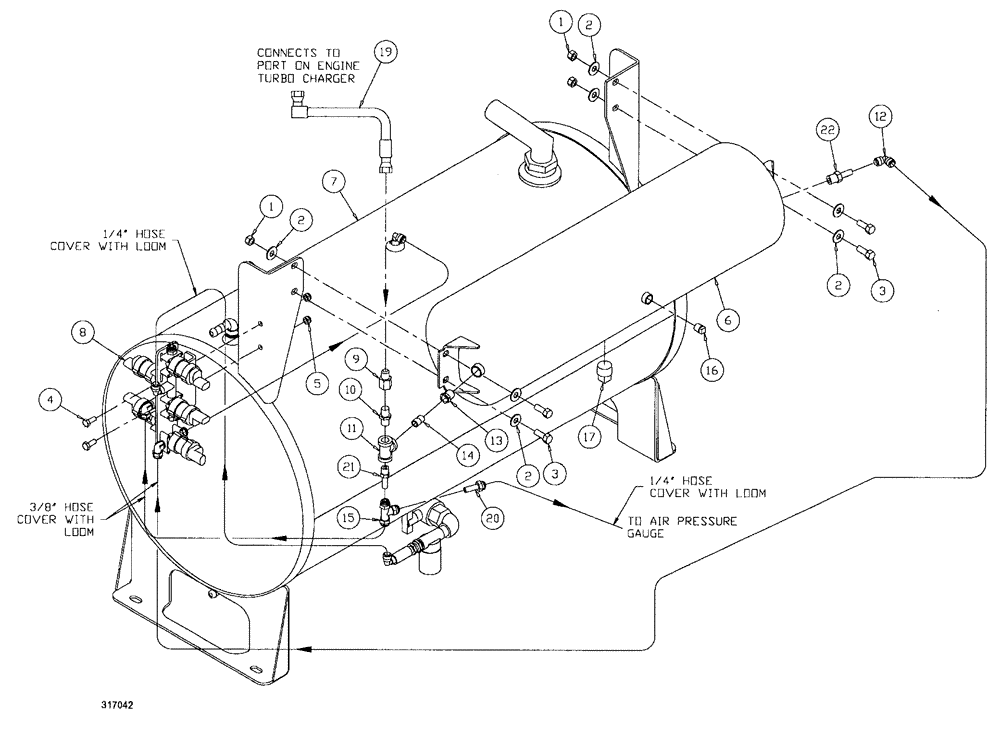

Схема запчастей Case IH SPX3200B - (174) - AIR TANK/SOLENOID GROUP (78) - SPRAYING
1
3
2
10
15
12
22
3
6
4
5
1
11
9
21
7
2
2
2
17
20
14
19
13
8
16
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

2

BN50146

WASHER,3/8", Stainless

8шт.

3

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

4

BN301020

BOLT,Hex, M8 x 16, 10.9

2шт.

5

86528579

NUT,M8 x 1.25

2шт.

6

BN316553

AIR TANK

8" dia. x 32"

1шт.

7

NSS

NOT SOLD SEPARAT

GROUP, foamer, parts

1шт.

See Fig. 175

1шт.

8

NSS

NOT SOLD SEPARAT

GROUP, solenoids, valves

1шт.

See Fig. 176

1шт.

9

BN53733

ADAPTER

1 /4" NPT x 9/16" JIC

1шт.

10

BN307985

VALVE

check, 1-2.5 CRK, 1/4 P

1шт.

11

BN2011315

TEE

Pipe 1/4" SS

1шт.

12

BN2399410

HYD CONNECTOR

Tube ULC380

1шт.

13

BN313188

BUSHING

3/8 NPT - 1/4 NPT, SS

1шт.

14

BN73000

NIPPLE, LUBE

NIPPLE 1/4 NPT Close SS

1шт.

15

BN317422

TEE

connector, 3/8", tube

1шт.

16

BN1666253

PLUG

Pipe 1/4 Sq. Hd.

1шт.

17

BN305117

PLUG

3/4 pipe, SS

1шт.

18

BN317130

HARNESS

T. foam 3200B

1шт.

19

BN67990

HOSE,0.38" ID x 260.00"

EPDM

1шт.

20

BN317423

REDUCER

connector, 3/8 x 1/4

1шт.

21

BN317484

FITTING

tube, connector, MT38014

1шт.

22

BN2399407

PIPE FITTING

Connector, Tube MT38038

1шт.
