(173) - FOAM MARKER BOOM GROUP (90)

Запчасти Case IH SPX3200B (173) - FOAM MARKER BOOM GROUP (90) (78) - SPRAYING

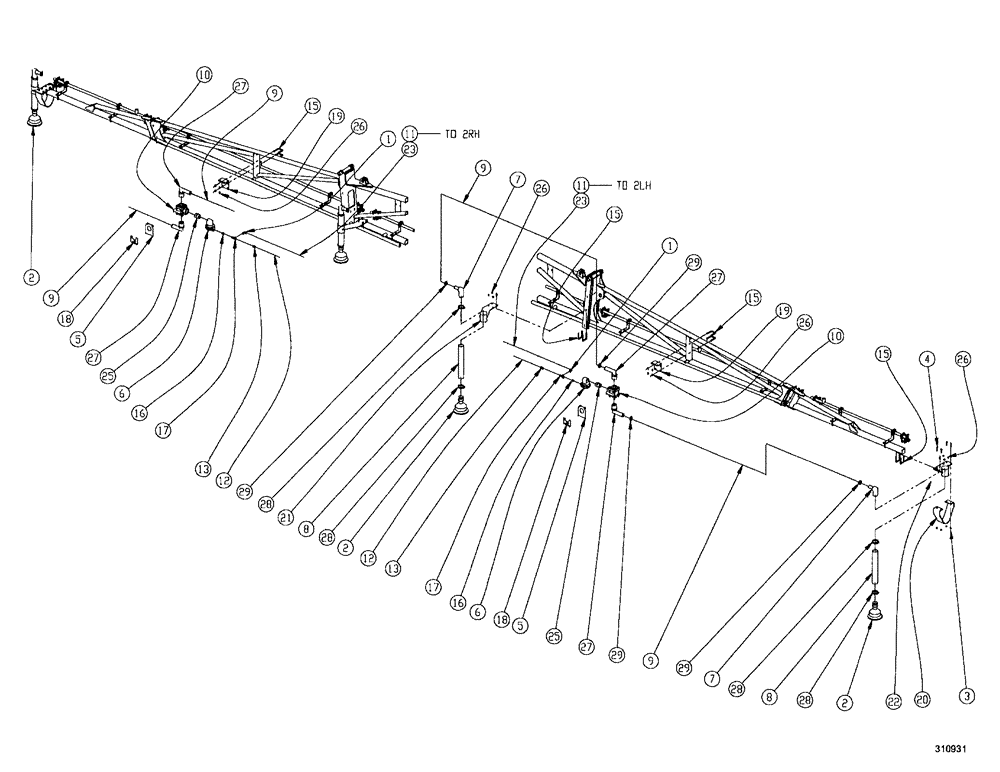

Схема запчастей Case IH SPX3200B - (173) - FOAM MARKER BOOM GROUP (90) (78) - SPRAYING
9
2
13
4
28
7
9
10
2
16
6
26
29
8
2
15
13
29
11
22
17
28
26
3
12
23
11
27
27
21
19
25
16
18
12
9
25
27
28
8
28
18
26
17
9
29
26
19
15
5
29
7
27
6
23
5
10
20
15
15
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

2

BN2403252

BELL

Foam Marker

4шт.

3

BN304419

NUT

M10-1.5, NLN, 10.9

8шт.

4

BN301045

BOLT,Hex, M10 x 25, 10.9, Full Thd

8шт.

5

BN320997

BRACKET

Decal Mount (SS)

2шт.

6

BN307636

CHAMBER

Foam Mixing

2шт.

7

BN310939

FITTING,2" Male Thread x 1-1/4" 90 Degree Hose Barb

2" Hose Barb x 1-1/4" Hose Barb, 90 DEG, Poly

4шт.

8

BN310941

HOSE,2.00" ID x 16.00"

Drop

4шт.

9

BN310942

HOSE,1.25" ID x 10.00'

Foamer

4шт.

10

BN311011

VALVE,1-1/4" NPT Female; Full Port

3 way, 1 1/4 SL

2шт.

11

BN311114

HOSE,0.38" ID x 45.00'

Synflex

2шт.

12

BN311113

FLEXIBLE HOSE,45.00"

Synflex

2шт.

13

BN312038

VENTURI

assembly, head, foam

2шт.

15

BN312959

U-BOLT

BOLT "U" 3/8" square bend, 2.06 ID

12шт.

16

BN313188

BUSHING

3/8 NPT - 1/4 NPT, SS

2шт.

17

BN313189

TEE

4-4-4, NPT, SS

2шт.

18

BN313190

DECAL

foamer flow

2шт.

19

BN313191

MOUNTING PARTS

foamer ball valve

2шт.

20

BN313335

SKID/SHOE

Boom breakaway

2шт.

21

BN313193

MOUNTING PARTS

inner, foamtube

2шт.

22

BN313416

MOUNTING PARTS

outer, foamtube

2шт.

23

BN314002

LOOM

black, 5/8 x 45'

2шт.

25

BN313211

NIPPLE

Hex, 1-1/4"

2шт.

26

BN50756

NUT

3/8-16, NLN, G5

24шт.

27

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

4шт.

28

BN76020

HOSE CLAMP

1 & 1/2 - 2 Hose SS

8шт.

29

BN76084

HOSE CLAMP

Adj. #24, SS

8шт.
