(172) - FOAM MARKER BOOM GROUP (80)

Запчасти Case IH SPX3200B (172) - FOAM MARKER BOOM GROUP (80) (78) - SPRAYING

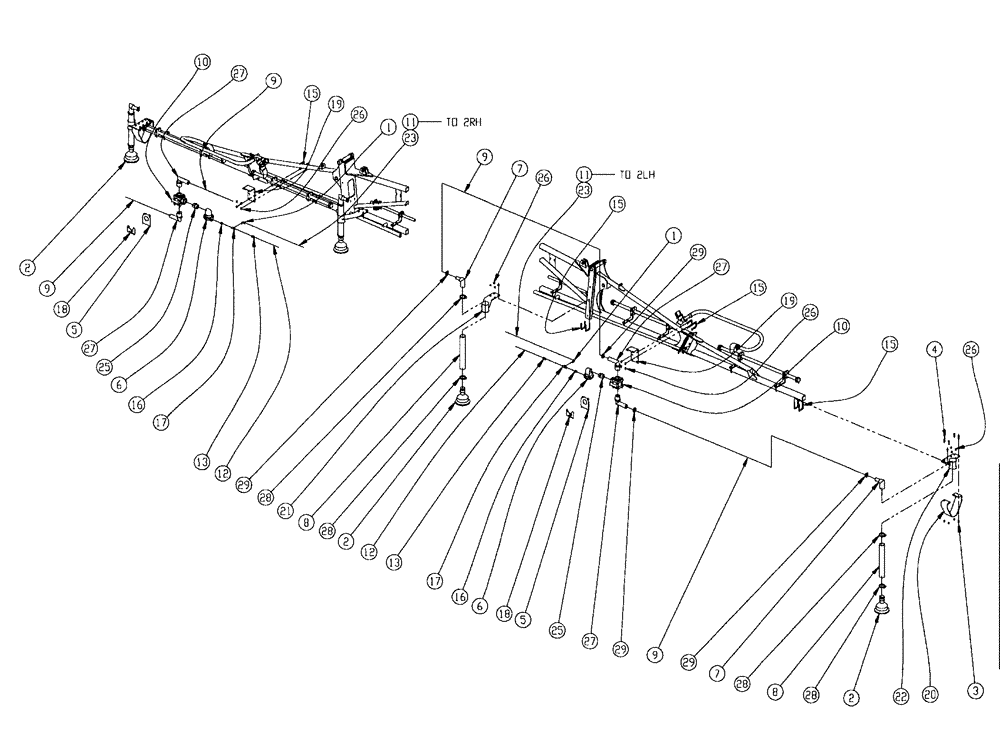

Схема запчастей Case IH SPX3200B - (172) - FOAM MARKER BOOM GROUP (80) (78) - SPRAYING
15
4
10
15
19
1
17
5
28
27
23
12
22
13
9
27
9
26
10
16
3
26
9
26
27
29
25
2
2
2
13
18
23
28
18
11
17
29
27
28
1
25
11
6
29
15
7
8
21
26
20
12
15
29
19
16
6
28
7
5
9
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN2399404

90 ELBOW

1/4" MPT x 1/4" OD Tube, Push Lock Fitting

2шт.

2

BN2403252

BELL

Foam Marker

4шт.

3

BN304419

NUT

M10-1.5, NLN, 10.9

8шт.

4

BN301045

BOLT,Hex, M10 x 25, 10.9, Full Thd

8шт.

5

BN320997

BRACKET

Decal Mount (SS)

2шт.

6

BN307636

CHAMBER

Foam Mixing

2шт.

7

BN310939

FITTING,2" Male Thread x 1-1/4" 90 Degree Hose Barb

2" Hose Barb x 1-1/4" Hose Barb, 90 DEG, Poly

4шт.

8

BN310941

HOSE,2.00" ID x 16.00"

Drop

4шт.

9

BN316042

HOSE,1.25" ID x 5.00'

Foamer

4шт.

10

BN311011

VALVE,1-1/4" NPT Female; Full Port

3 way, 1 1/4 SL

2шт.

11

BN311114

HOSE,0.38" ID x 45.00'

Synflex

2шт.

12

BN311113

FLEXIBLE HOSE,45.00"

Synflex

2шт.

13

BN312038

VENTURI

assembly, head, foam

2шт.

15

BN312959

U-BOLT

BOLT "U" 3/8" square bend, 2.06 ID

12шт.

16

BN313188

BUSHING

3/8 NPT - 1/4 NPT, SS

2шт.

17

BN313189

TEE

4-4-4, NPT, SS

2шт.

18

BN313190

DECAL

foamer flow

2шт.

19

BN316047

MOUNTING PARTS

VALVE, foam ball, 80'

2шт.

20

BN313335

SKID/SHOE

Boom breakaway

2шт.

21

BN313193

MOUNTING PARTS

inner, foamtube

2шт.

22

BN313416

MOUNTING PARTS

outer, foamtube

2шт.

23

BN314002

LOOM

black, 5/8 x 45'

2шт.

25

BN313211

NIPPLE

Hex, 1-1/4"

2шт.

26

BN50756

NUT

3/8-16, NLN, G5

24шт.

27

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

4шт.

28

BN76020

HOSE CLAMP

1 & 1/2 - 2 Hose SS

8шт.

29

BN76084

HOSE CLAMP

Adj. #24, SS

8шт.
