(171) - NOZZLE SPACING, 90 OUTER BOOM - 10"

Запчасти Case IH SPX3200B (171) - NOZZLE SPACING, 90 OUTER BOOM - 10" (78) - SPRAYING

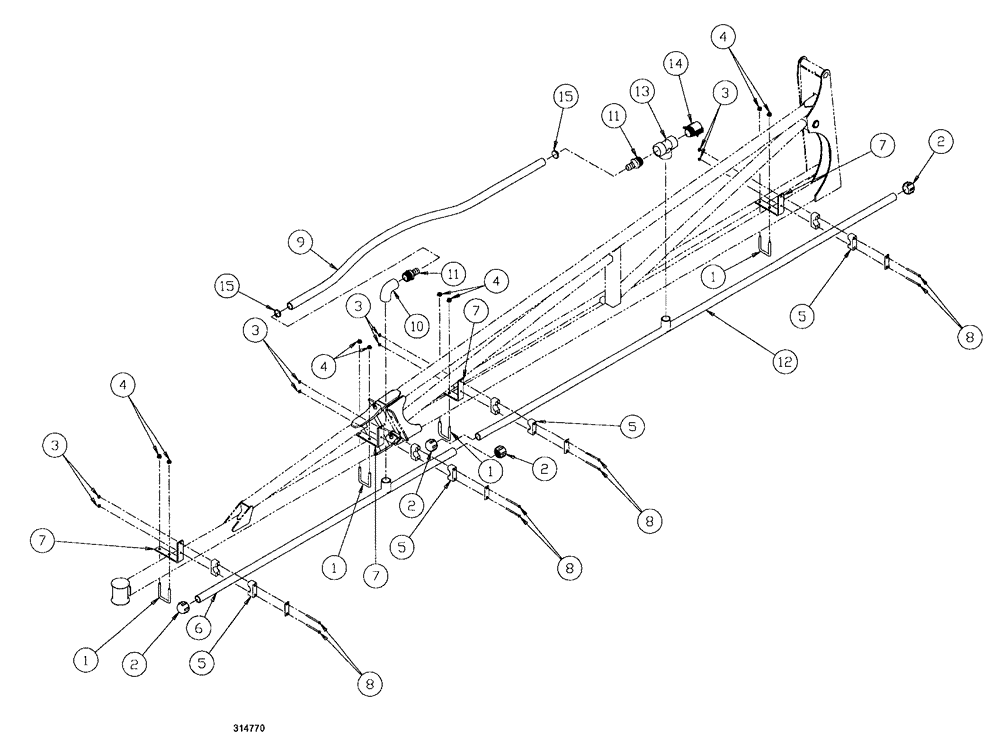

Схема запчастей Case IH SPX3200B - (171) - NOZZLE SPACING, 90 OUTER BOOM - 10" (78) - SPRAYING
8
8
1
6
4
5
7
10
2
13
3
1
9
15
4
3
1
12
7
5
4
2
8
3
2
2
15
8
5
1
11
7
14
3
11
7
5
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN312959

U-BOLT

BOLT "U" 3/8" square bend, 2.06 ID

4шт.

2

BN73606

CAP

1" NPT, Poly Pipe

4шт.

3

BN306618

NUT

M6-1, WLN, 10.9

8шт.

4

BN50062

LOCK NUT,3/8"-16, Stainless Steel

8шт.

5

BN67054

CLAMP

1.315" OD

4шт.

6

BN314846

TUBE

10" SP X 7 EA

1шт.

7

BN313178

MOUNTING PARTS

R-LH boom 1"

4шт.

8

86980369

BOLT,Hex, M6 x 80, Cl 8.8

M6 1 x 80, HH, 8.8, DOR

8шт.

9

BN315690

HOSE,1.00" ID x 75.00"

EPDM

1шт.

10

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

1шт.

11

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

2шт.

12

BN314845

TUBE

10" SP X 11 EA

1шт.

13

BN73662

TEE

1-1/4", Poly

1шт.

14

BN315618

COUPLING,1" Female Coupler-1-1/4" Male Thread

1 1/4 X FM, cam

1шт.

15

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.
