(170) - NOZZLE SPACING, 80 OUTER BOOM - 10"

Запчасти Case IH SPX3200B (170) - NOZZLE SPACING, 80 OUTER BOOM - 10" (78) - SPRAYING

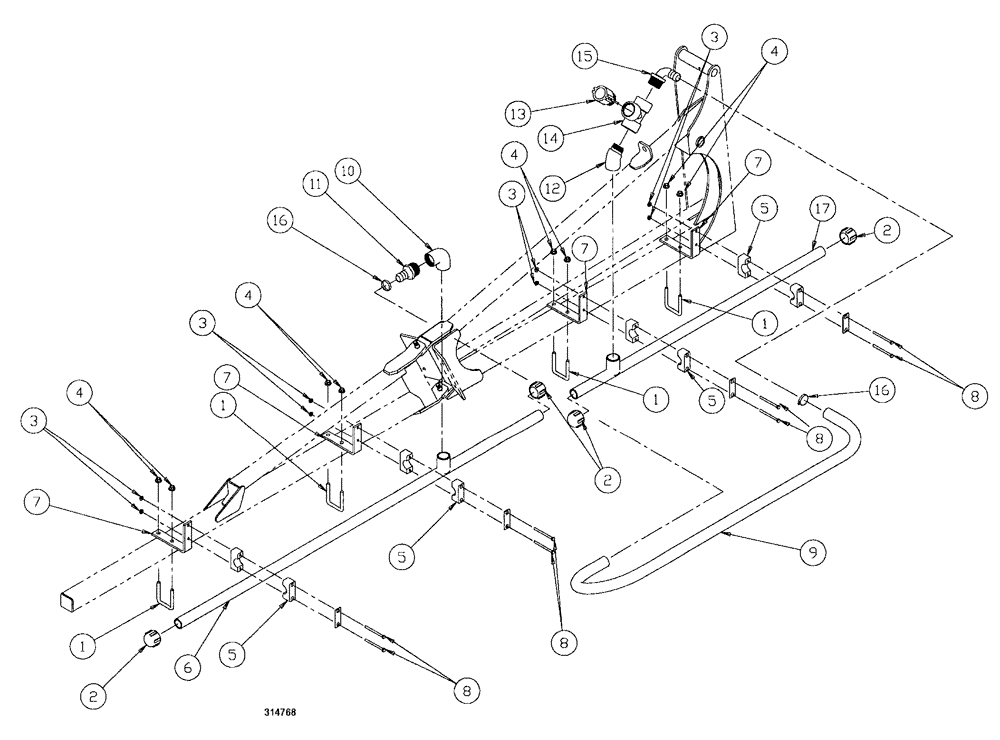

Схема запчастей Case IH SPX3200B - (170) - NOZZLE SPACING, 80 OUTER BOOM - 10" (78) - SPRAYING
7
1
5
8
14
10
8
6
4
2
3
13
11
16
16
5
2
9
4
7
8
3
4
8
2
4
7
3
3
1
1
1
17
15
5
7
5
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN312959

U-BOLT

BOLT "U" 3/8" square bend, 2.06 ID

4шт.

2

BN73606

CAP

1" NPT, Poly Pipe

4шт.

3

BN306618

NUT

M6-1, WLN, 10.9

8шт.

4

BN50062

LOCK NUT,3/8"-16, Stainless Steel

8шт.

5

BN67054

CLAMP

1.315" OD

4шт.

6

BN314846

TUBE

10" SP X 7 EA

1шт.

7

BN313178

MOUNTING PARTS

R-LH boom 1"

4шт.

8

86980369

BOLT,Hex, M6 x 80, Cl 8.8

M6 1 x 80, HH, 8.8, DOR

8шт.

9

BN69393

HOSE

1" EPDM X 58"

1шт.

10

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

1шт.

11

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

1шт.

12

BN313198

ELBOW

1 1/4" NPT ST 45°

1шт.

13

BN315618

COUPLING,1" Female Coupler-1-1/4" Male Thread

1 1/4 X FM, cam

1шт.

14

BN73662

TEE

1-1/4", Poly

1шт.

15

BN2296590

90 ELBOW

1-1/4" MPT x 1" Hose Barb, Poly

1шт.

16

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

17

BN315132

TUBE

10" SP X 5 EA

1шт.
