(169) - NOZZLE SPACING, 90 OUTER BOOM - 20"

Запчасти Case IH SPX3200B (169) - NOZZLE SPACING, 90 OUTER BOOM - 20" (78) - SPRAYING

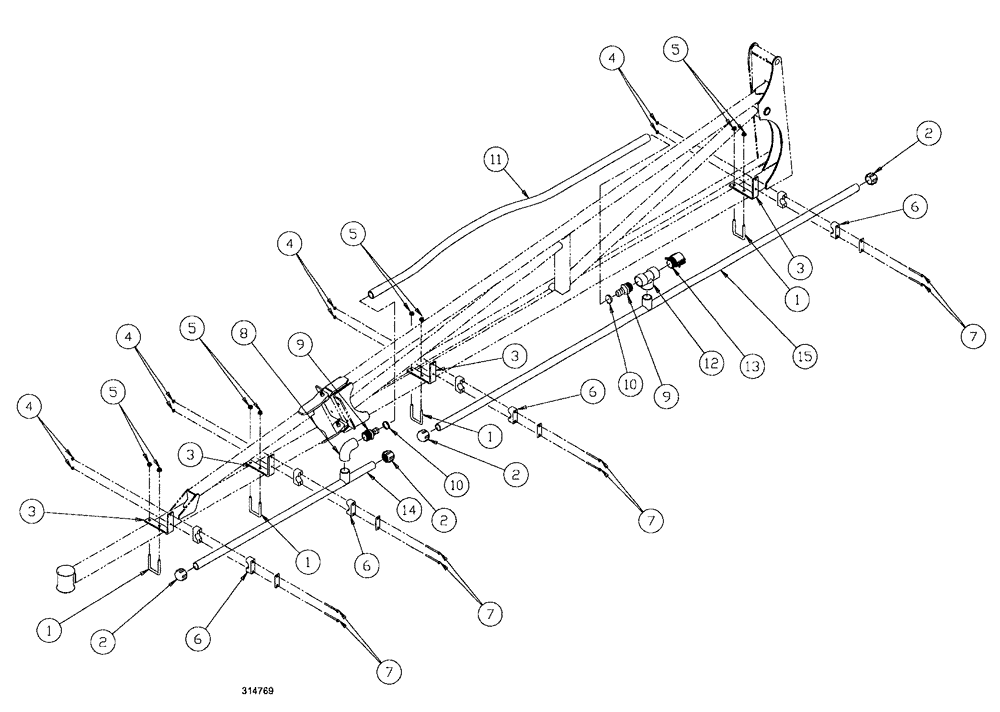

Схема запчастей Case IH SPX3200B - (169) - NOZZLE SPACING, 90 OUTER BOOM - 20" (78) - SPRAYING
3
12
1
1
8
7
6
5
14
6
4
6
11
10
7
4
5
9
1
2
7
4
2
6
2
3
1
13
9
3
15
10
7
3
2
5
4
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN312959

U-BOLT

BOLT "U" 3/8" square bend, 2.06 ID

4шт.

2

BN73606

CAP

1" NPT, Poly Pipe

4шт.

3

BN313178

MOUNTING PARTS

R-LH boom 1"

4шт.

4

BN306618

NUT

M6-1, WLN, 10.9

8шт.

5

BN50062

LOCK NUT,3/8"-16, Stainless Steel

8шт.

6

BN67054

CLAMP

1.315" OD

4шт.

7

86980369

BOLT,Hex, M6 x 80, Cl 8.8

M6 1 x 80, HH, 8.8, DOR

8шт.

8

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

1шт.

9

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

2шт.

10

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

11

BN315690

HOSE,1.00" ID x 75.00"

EPDM

1шт.

12

BN73662

TEE

1-1/4", Poly

1шт.

13

BN315618

COUPLING,1" Female Coupler-1-1/4" Male Thread

1 1/4 X FM, cam

1шт.

14

BN313175

TUBE

20" SP x 3

1шт.

15

BN313176

TUBE

20" SP x 6

1шт.
