(167) - NOZZLE SPACING, LH/RH WING - 10"

Запчасти Case IH SPX3200B (167) - NOZZLE SPACING, LH/RH WING - 10" (78) - SPRAYING

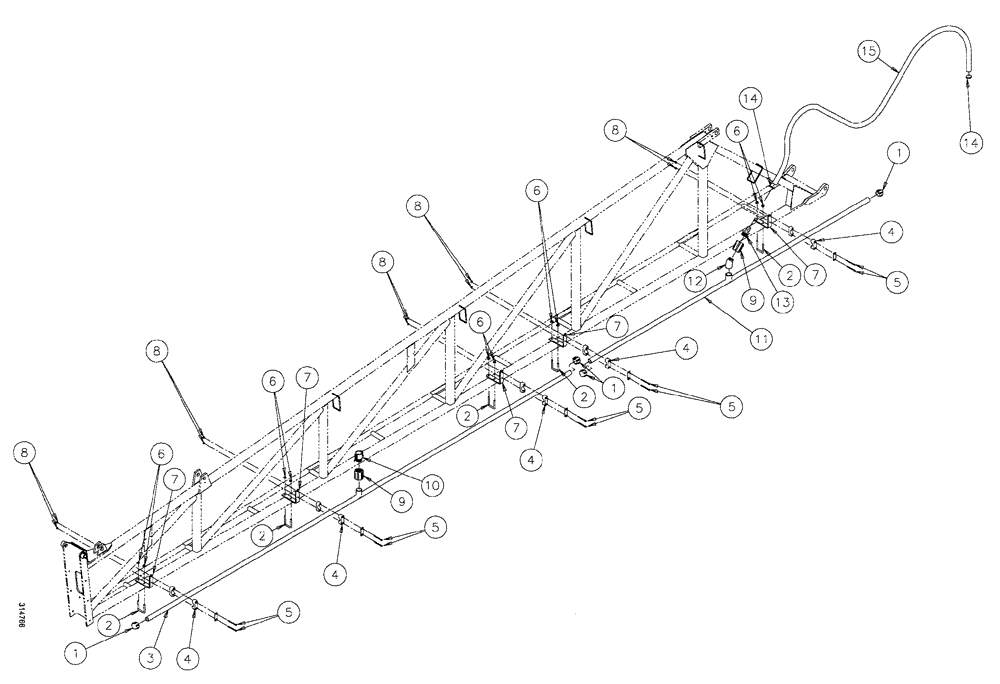

Схема запчастей Case IH SPX3200B - (167) - NOZZLE SPACING, LH/RH WING - 10" (78) - SPRAYING
1
1
6
7
10
7
7
11
15
8
4
14
4
13
3
8
2
12
7
8
2
5
5
2
8
9
6
2
4
14
5
2
6
9
5
4
6
4
8
5
6
1
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN73606

CAP

1" NPT, Poly Pipe

4шт.

2

BN312959

U-BOLT

BOLT "U" 3/8" square bend, 2.06 ID

5шт.

3

BN314844

TUBE

10" SP X 18 EA

1шт.

4

BN67054

CLAMP

1.315" OD

5шт.

5

86980369

BOLT,Hex, M6 x 80, Cl 8.8

M6 1 x 80, HH, 8.8, DOR

10шт.

6

BN50062

LOCK NUT,3/8"-16, Stainless Steel

10шт.

7

BN313178

MOUNTING PARTS

R-LH boom 1"

5шт.

8

BN306618

NUT

M6-1, WLN, 10.9

10шт.

9

BN305269

COUPLING

1 1/4in., poly

2шт.

10

BN315618

COUPLING,1" Female Coupler-1-1/4" Male Thread

1 1/4 X FM, cam

1шт.

11

BN314843

TUBE

10" SP X 12 EA

1шт.

12

BN313198

ELBOW

1 1/4" NPT ST 45°

1шт.

13

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

1шт.

14

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

15

BN53821

HOSE

EPDM 1" ID x 100"

1шт.
