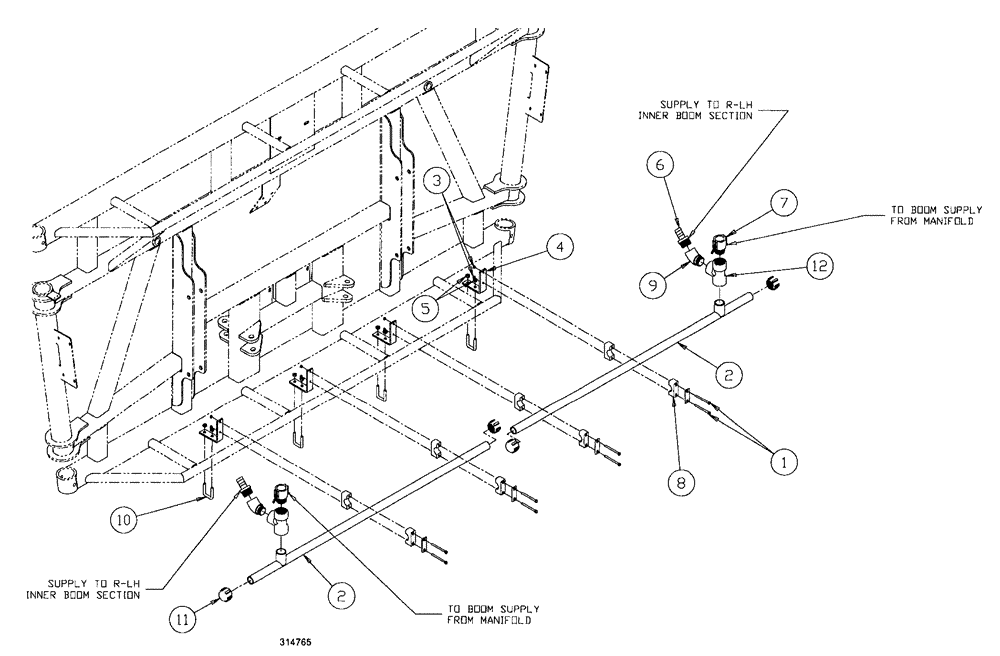

Запчасти Case IH SPX3200B (166) - NOZZLE SPACING, CENTER SECTION - 10" (78) - SPRAYING

1

86980369

BOLT,Hex, M6 x 80, Cl 8.8

M6 1 x 80, HH, 8.8, DOR

8шт.

2

BN314842

TUBE

10" SP X 6 EA

2шт.

3

BN306618

NUT

M6-1, WLN, 10.9

8шт.

4

BN313184

BOOM

mount, center 1"

4шт.

5

BN50062

LOCK NUT,3/8"-16, Stainless Steel

8шт.

6

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

2шт.

7

BN315618

COUPLING,1" Female Coupler-1-1/4" Male Thread

1 1/4 X FM, cam

2шт.

8

BN67054

CLAMP

1.315" OD

4шт.

9

BN313198

ELBOW

1 1/4" NPT ST 45°

2шт.

10

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

4шт.

11

BN73606

CAP

1" NPT, Poly Pipe

4шт.

12

BN73662

TEE

1-1/4", Poly

2шт.
