(165) - NOZZLE SPACING, LH/RH WING - 20"

Запчасти Case IH SPX3200B (165) - NOZZLE SPACING, LH/RH WING - 20" (78) - SPRAYING

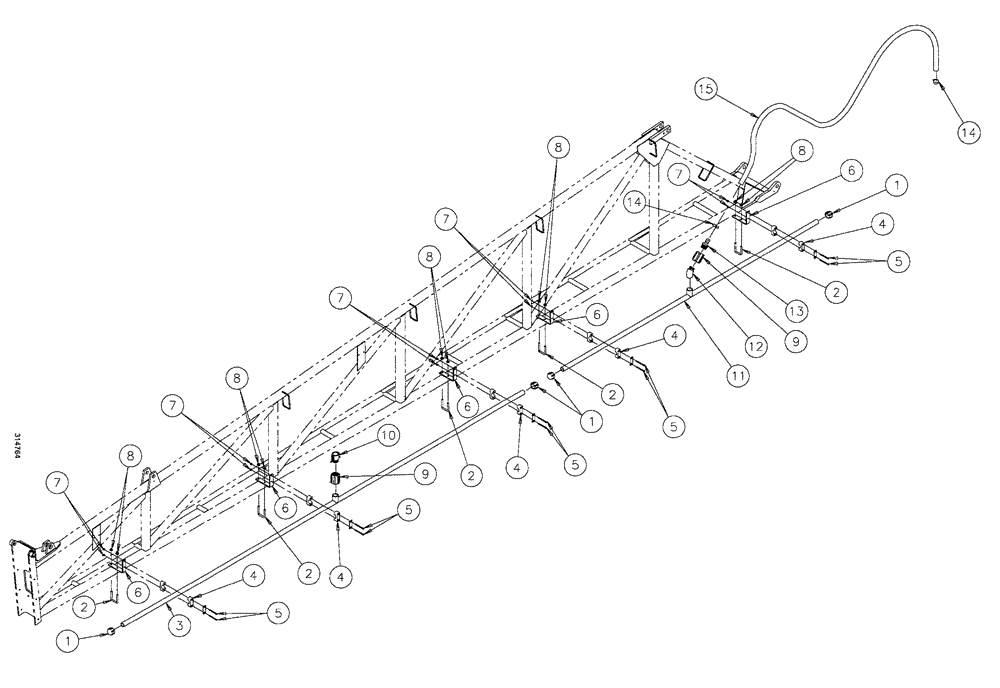

Схема запчастей Case IH SPX3200B - (165) - NOZZLE SPACING, LH/RH WING - 20" (78) - SPRAYING
2
7
4
7
14
4
6
5
5
7
7
5
9
8
10
15
4
1
8
1
2
12
2
11
6
1
2
6
5
8
4
13
5
6
7
14
6
8
2
3
4
8
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN73606

CAP

1" NPT, Poly Pipe

4шт.

2

BN312959

U-BOLT

BOLT "U" 3/8" square bend, 2.06 ID

5шт.

3

BN313177

TUBE

20" SP x 9

1шт.

4

BN67054

CLAMP

1.315" OD

5шт.

5

86980369

BOLT,Hex, M6 x 80, Cl 8.8

M6 1 x 80, HH, 8.8, DOR

10шт.

6

BN313178

MOUNTING PARTS

R-LH boom 1"

5шт.

7

BN306618

NUT

M6-1, WLN, 10.9

10шт.

8

BN50062

LOCK NUT,3/8"-16, Stainless Steel

10шт.

9

BN305269

COUPLING

1 1/4in. poly

2шт.

10

BN315618

COUPLING,1" Female Coupler-1-1/4" Male Thread

1 1/4 X FM, cam

1шт.

11

BN313176

TUBE

20" SP x 6

1шт.

12

BN313198

ELBOW

1 1/4" NPT ST 45°

1шт.

13

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

1шт.

14

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

15

BN53821

HOSE

EPDM 1" ID x 100"

1шт.
