(163) - BOOM, RH/LH, CONTROL VALVES

Запчасти Case IH SPX3200B (163) - BOOM, RH/LH, CONTROL VALVES (78) - SPRAYING

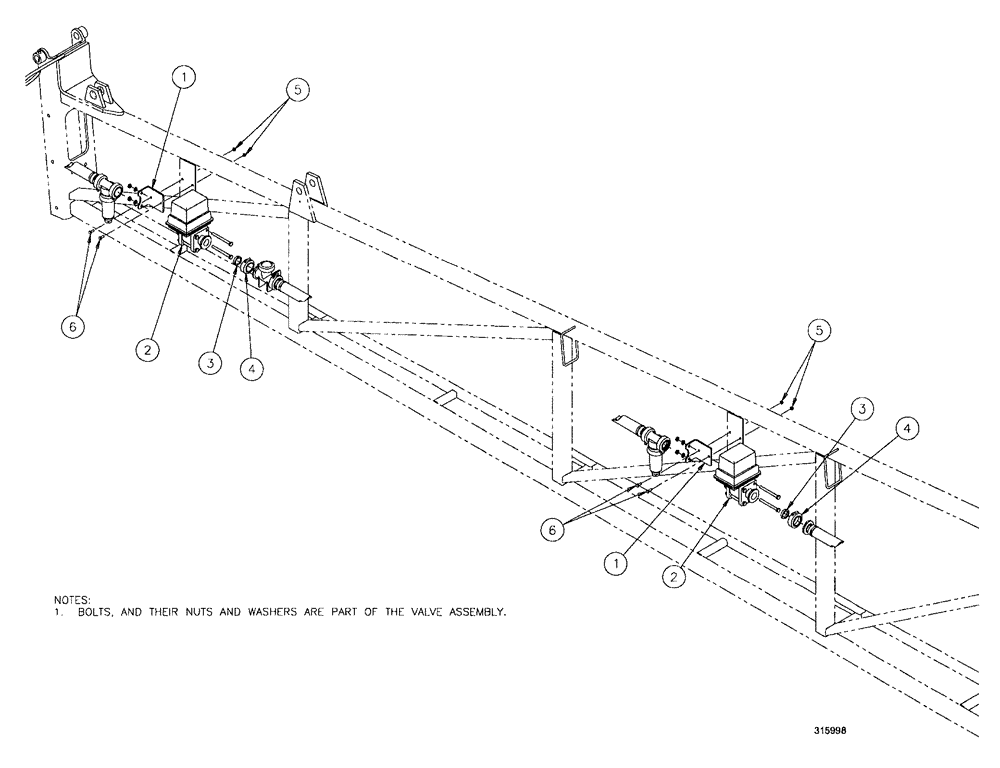

Схема запчастей Case IH SPX3200B - (163) - BOOM, RH/LH, CONTROL VALVES (78) - SPRAYING
1
3
6
1
3
2
5
4
4
6
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN306796

BRACKET

valve mount

2шт.

2

BN305049

VALVE,1" Electric Valve

electric 2 way 1"

2шт.

3

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

2шт.

4

BN303203

CLAMP,1" Flange

1FL

2шт.

5

BN304417

NUT

M6-1, NLN, 10.9

4шт.

6

86639037

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

4шт.

NOTE: 1. Bolts and their nuts and washers are part of the Valve Assembly

1шт.
