(162) - CENTER SECTION CONTROL VALVE

Запчасти Case IH SPX3200B (162) - CENTER SECTION CONTROL VALVE (78) - SPRAYING

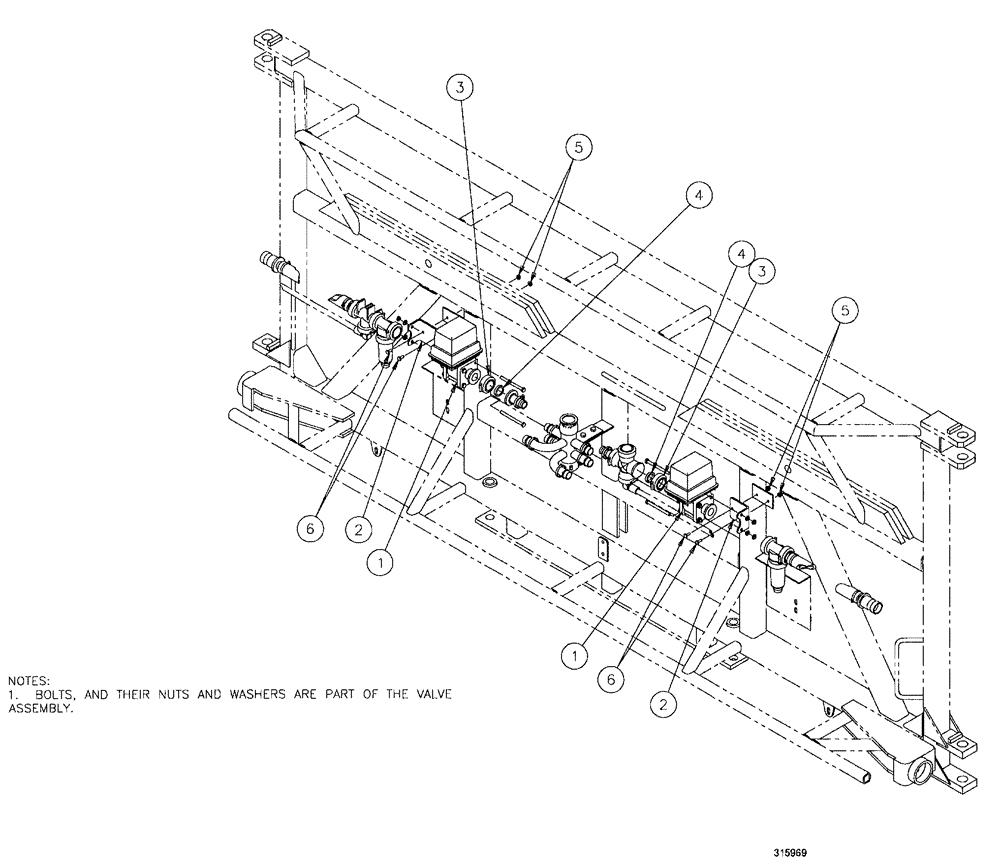

Схема запчастей Case IH SPX3200B - (162) - CENTER SECTION CONTROL VALVE (78) - SPRAYING
4
5
6
5
1
2
4
3
3
1
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN305049

VALVE,1" Electric Valve

electric 2 way 1"

2шт.

2

BN318761

BRACKET

mount, valve, 1"

2шт.

3

BN303203

CLAMP,1" Flange

1 FL

2шт.

4

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

2шт.

5

BN50052

LOCK NUT,1/4"-20, USR, SS

4шт.

6

BN50212

BOLT,1/4"-20 x 3/4", Stainless Steel

4шт.

NOTE: Bolts, and their nuts and washers are part of the valve assembly.

1шт.
