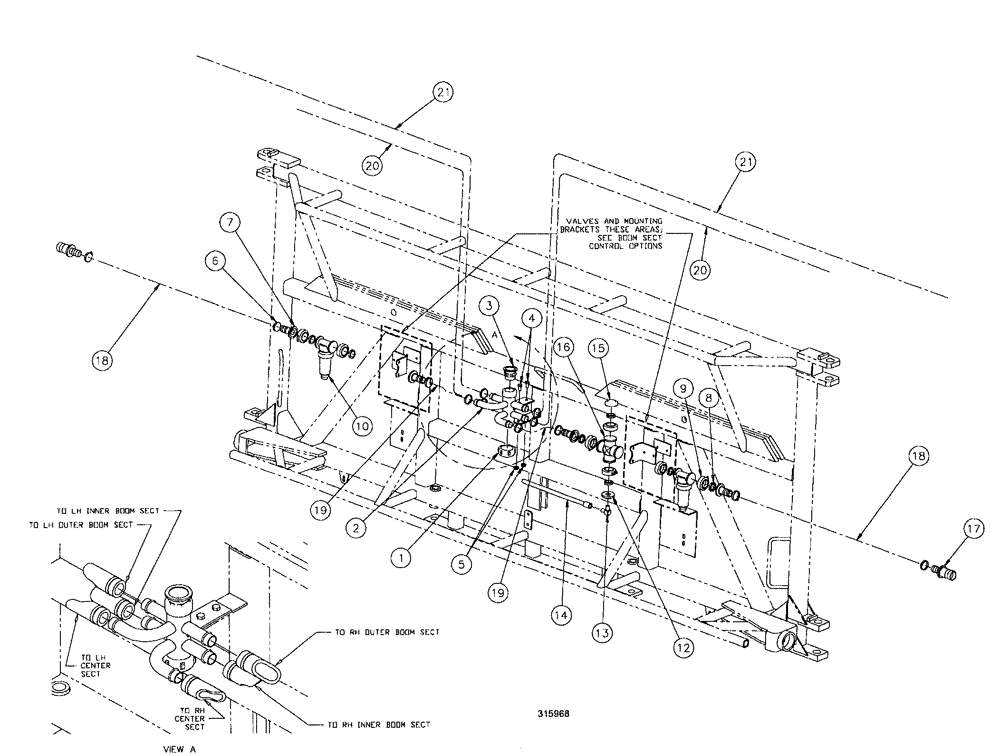

Запчасти Case IH SPX3200B (161) - CENTER SECTION (78) - SPRAYING

1

BN73739

CAP

1 1/2" poly pipe

1шт.

2

BN66643

MANIFOLD

OUTLET, 6 port

1шт.

3

BN303190

FITTING,2" Flange x 1-1/2" NPT, Poly

2" Flange x 1-1/2" NPT, Poly

1шт.

4

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

5

BN50062

LOCK NUT,3/8"-16, Stainless Steel

2шт.

6

BN75990

HOSE CLAMP

#16, Stainless Steel

12шт.

7

BN304319

FITTING,1" Flange x 1" Hose Barb, Poly

1in. flng X 1in. barb

4шт.

8

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

7шт.

9

BN303203

CLAMP,1" Flange

1FL

7шт.

10

BN311711

STRAINER ASSY.

1" -50 mesh flange

2шт.

12

BN306897

PLUG,1" Flange, Poly

1" Flange, Poly

1шт.

13

BN53734

ELBOW

FT, 90° 1/4" NPT x 9/16" JIC

1шт.

14

BN316004

TUBE

HOSE, 3/8" x 400" EPDM

1шт.

15

BN306897

PLUG,1" Flange, Poly

1" Flange, Poly

1шт.

16

BN313029

CROSS

1" flange

1шт.

17

BN2406318

COUPLING

E 1" poly

2шт.

18

BN316005

TUBE

HOSE, 1" X 32" EPDM

2шт.

19

BN316006

TUBE

HOSE, 1" X 28" EPDM

2шт.

20

BN316007

TUBE

HOSE, 1" x 252" EPDM

2шт.

21

BN316008

TUBE

1" x 360" EPDM

2шт.
