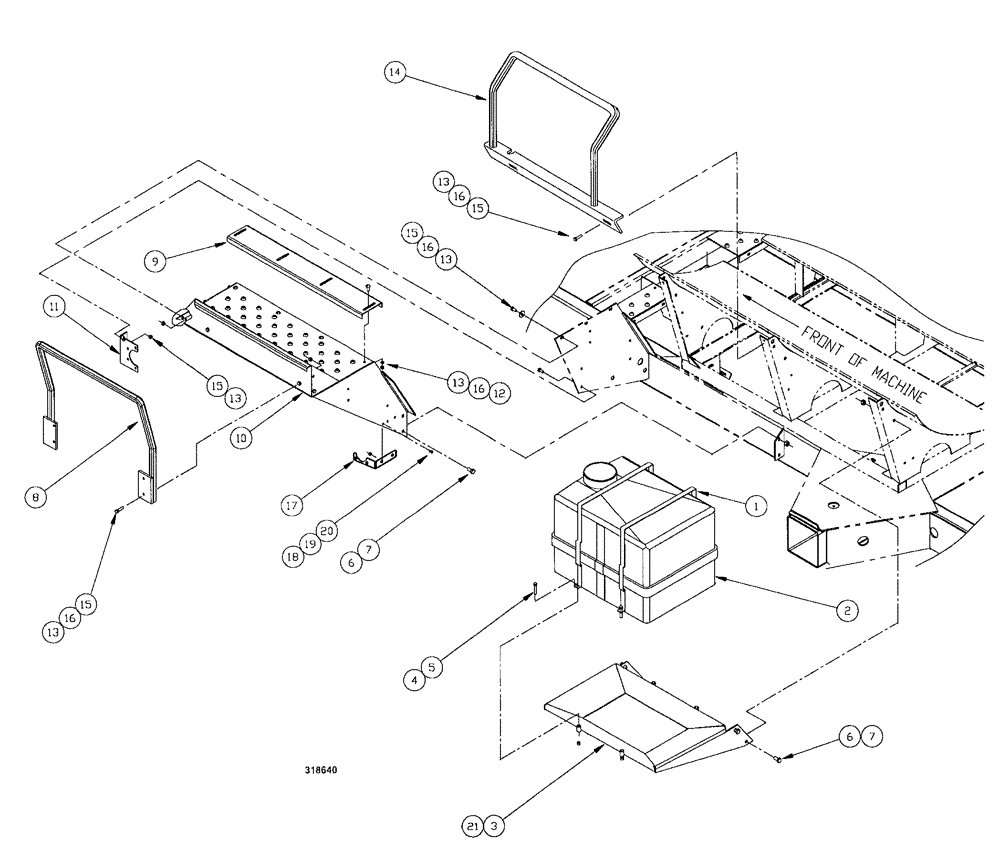

Запчасти Case IH SPX3200B (158) - RINSE AND DECK ASSEMBLY - ELLIPTICAL TANK (78) - SPRAYING

1

BN63984

STRAP

14 GA Hrs 1 x 49.5

4шт.

2

NSS

NOT SOLD SEPARAT

ASSY., tank, 35 GAL

1шт.

See Fig. 159

1шт.

3

BN24301

SUPPORT

35 Gallon Tank 771

1шт.

4

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

8шт.

5

BN50131

LOCK NUT

3/8-16, CTR, PL

8шт.

6

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

10шт.

7

86992215

LOCK NUT,1/2"-13, GC

10шт.

8

BN318556

RAIL

hand LH outer

1шт.

9

BN24513

BRACKET

12 GA HRS 7.0 x 34.50

1шт.

10

BN318539

PLATFORM ASSY.

Deck, LH, 800 Elliptical

1шт.

11

BN29447

BRACKET

10 ga HRS 5.92" x 6.25"

1шт.

12

343299A1

SET SCREW,3/8"-16 X 1.00", Stainless Steel

4шт.

13

BN50061

LOCK NUT

3/8"-16, G5, Whiz

15шт.

14

BN318616

RAIL

hand, inner, LH

1шт.

15

BN50251

BOLT

3/8"-16 x 3/4, HH, G5

11шт.

16

BN50145

WASHER

3/8, G5

9шт.

17

BN69411

VALVE

Support 1.5" x 6" Angle

1шт.

18

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

2шт.

19

BN50141

WASHER

5/16, FW, G5

3шт.

20

BN50056

LOCK NUT

5/16"-18, Whiz

2шт.

21

BN312827

MOUNTING PARTS

foam tank, RH

1шт.
