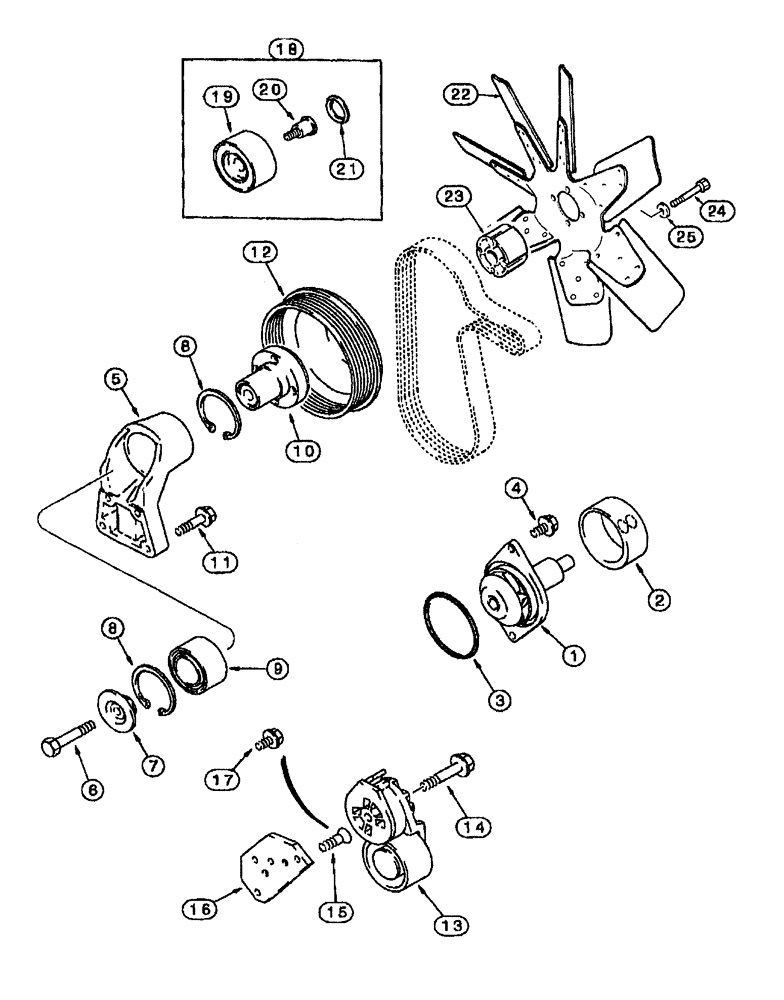

Запчасти Case IH SPX3200B (021) - WATER PUMP AND FAN (10) - ENGINE

J802970

PUMP, WATER

KIT

1шт.

J286278R

REMAN-WATER PUMP

SPX3200B

1шт.

J286278C

CORE-WATER PUMP

Return Number

1шт.

Consists of Refs. 1 - 3

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY

1шт.

3

238-5341

O-RING,0.21" Thk x 3.475" ID, -341, Cl 5, 75 Duro

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J911922

SUPPORT ASSY.

1шт.

Includes Refs. 6 - 10

1шт.

6

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

hex, special, M10 x 70 mm, class 12.9

1шт.

7

J923044

RETAINER

1шт.

8

100-21250

SNAP RING,2.50", Int, #250

2шт.

9

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

10

J911924

HUB

1шт.

11

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

12

J914461

PULLEY

fan, 207 mm diameter, 0.87 to 1 ratio

1шт.

13

J934817

BELT TENSIONER

1шт.

14

86624961

BOLT,Hex, M10 x 75mm, Cl 10.9

1шт.

15

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

16

J925275

SUPPORT

BRACKET

1шт.

17

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

18

A77817

KIT

Pulley Assembly, Belt Tension

1шт.

Consists of Refs. 19 - 21

1шт.

19

NSS

NOT SOLD SEPARAT

PULLEY

1шт.

20

NSS

NOT SOLD SEPARAT

BOLT

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL

1шт.

22

NSS

NOT SOLD SEPARAT

FAN, 28 in., 8 blade, metal

1шт.

See Fig. 055

1шт.

23

NSS

NOT SOLD SEPARAT

SPACER, fan

1шт.

See Fig. 055

1шт.

24

43253

BOLT,Hex, M10 x 1.5 x 100mm, Cl 10.9

4шт.

25

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.
