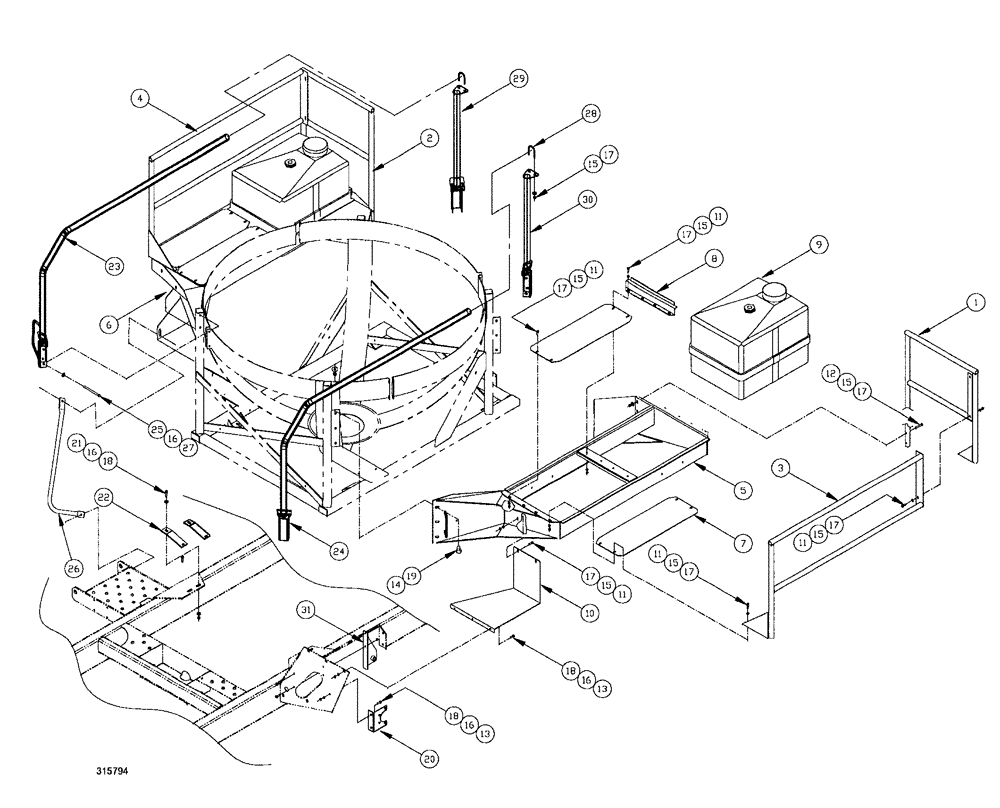

Запчасти Case IH SPX3200B (157) - RINSE AND DECK ASSEMBLY - SPHERICAL TANK (78) - SPRAYING

1

BN65109

SIDE RAIL

END, LH

1шт.

2

BN65171

SIDE RAIL

END, RH

1шт.

3

BN67912

RAIL

Side Safety LH

1шт.

4

BN68000

RAIL

Side Safety RH

1шт.

5

BN68006

PLATFORM ASSY.

Walkway Mount LH

1шт.

6

BN68005

PLATFORM ASSY.

Walkway Mount RH

1шт.

7

BN68001

PLATE

DECK, sheet

4шт.

8

BN25399

PLATE

Clamp 12 ga x 4.5 x 17

2шт.

9

NSS

NOT SOLD SEPARAT

ASSY., tank. 35 gal.

2шт.

See Fig. 159

1шт.

10

BN67918

STEP

1шт.

11

BN50232

BOLT,5/16"-18 x 1.00", Stainless Steel

30шт.

12

BN50239

BOLT,5/16"-18 x 1.75", Stainless

4шт.

13

BN50254

BOLT,3/8"-16 x 1", Stainless

7шт.

14

BN50691

BOLT,Hex, 1/2" - 13 x 1", SST

1/2"-13 x 1, Stainless Steel

12шт.

15

BN50142

WASHER,5/16", Stainless Steel

72шт.

16

BN50145

WASHER

3/8, G5

23шт.

17

280736

NUT,5/16"-18, GC

30шт.

18

BN50061

LOCK NUT

3/8"-16, G5, Whiz

8шт.

19

86992215

LOCK NUT,1/2"-13, GC

12шт.

20

BN29447

BRACKET

10 ga HRS 5.92" x 6.25"

1шт.

21

BN50403

BOLT

Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

22

BN69759

SUPPORT

Mount - Plumbing

1шт.

23

BN311740

HANDRAIL

Weldment, RH

1шт.

24

BN312102

HANDRAIL

Weldment, LH

1шт.

25

50275

BOLT Hex, 3/8"-16 x 3", G5

8шт.

26

BN312670

RAIL ASSY.

RH

1шт.

+

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

+ Indicates associated part

1шт.

+

BN312648

HANDLE

access

1шт.

+ Indicates associated part

1шт.

+

BN50131

LOCK NUT

3/8-16, CTR, PL

2шт.

+ Indicates associated part

1шт.

+

BN50145

WASHER

3/8, G5

2шт.

+ Indicates associated part

1шт.

27

BN50131

LOCK NUT

3/8-16, CTR, PL

8шт.

28

BN305201

U-BOLT

BOLT "U" .31 x 1.75, 304SS

2шт.

29

BN313313

MOUNTING PARTS

support, RH

1шт.

30

BN313314

MOUNTING PARTS

support, LH

1шт.

31

BN67395

BRACKET

Weldment

1шт.
