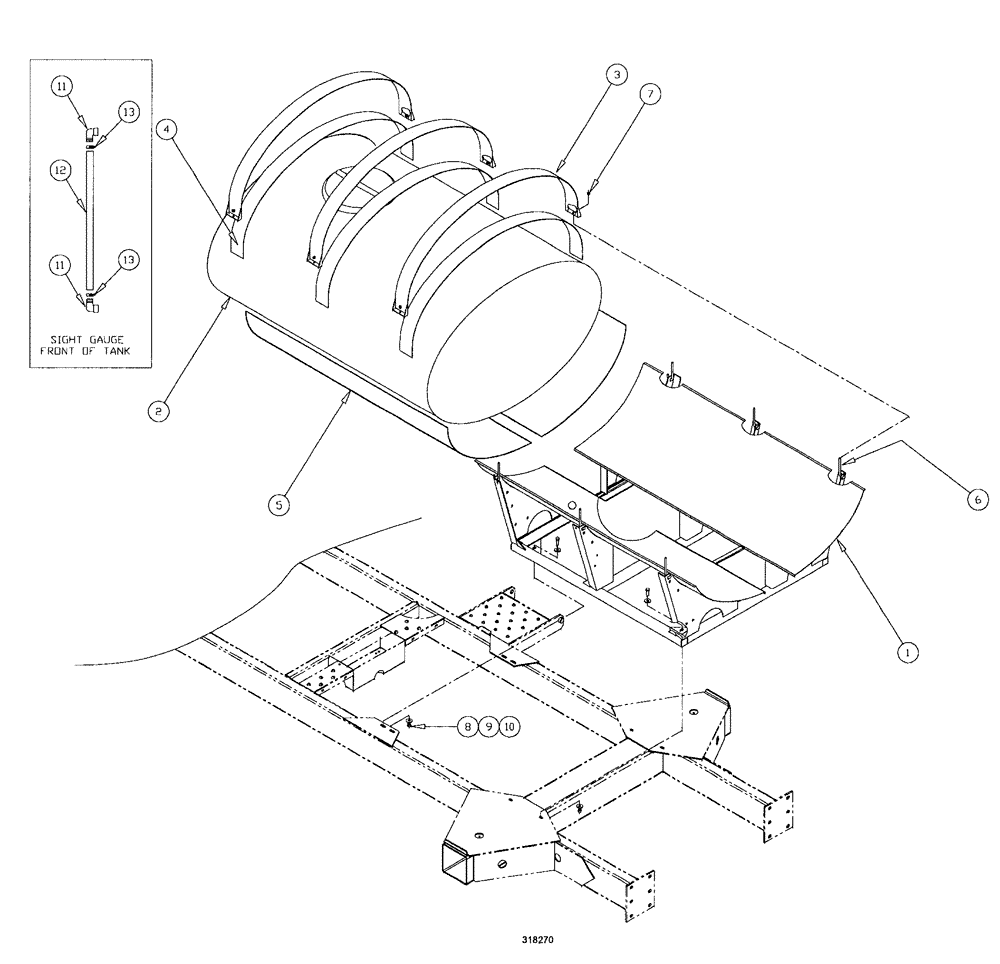

Запчасти Case IH SPX3200B (156) - ELLIPTICAL TANK ASSEMBLY - 800 GALLON (78) - SPRAYING

1

BN318272

SKID/SHOE

SS tank, ellptical

1шт.

2

BN318271

TANK

SS, ellptical, 800 gallon

1шт.

2a

87270464

CAP

16" With 10" Fill

1шт.

Not Shown

1шт.

2b

BN2391314-001

GASKET

For 16" Cap

1шт.

Service Parts for Ref. 2

1шт.

3

BN29430

STRAP

Tankband - 750 Gallon

3шт.

4

BN24121

LINER

1/8" EPDM 4" x 96"

3шт.

5

BN24122

LINER

1/8" EPDM 36" x 66"

2шт.

6

BN50707

BOLT

J-3/8-16 x 4.5

6шт.

7

BN50131

LOCK NUT

3/8-16, CTR, PL

6шт.

8

50283

BOLT Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

9

86992215

LOCK NUT,1/2"-13, GC

4шт.

10

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

8шт.

11

BN73684

ELBOW

90° 1" MPT x 3/4" Barb

2шт.

12

BN304661

HOSE

CLEAR, 3/4 X 38.50

1шт.

13

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

2шт.
