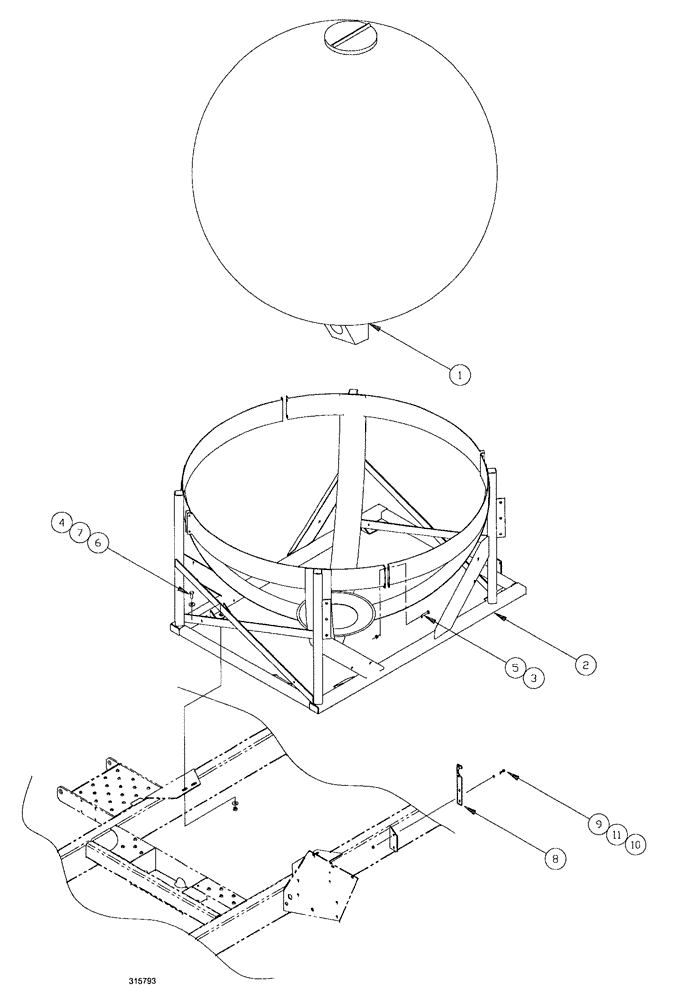

Запчасти Case IH SPX3200B (154) - SPHERICAL TANK ASSEMBLY - 750 GALLON (78) - SPRAYING

1

NSS

NOT SOLD SEPARAT

ASSY., tank, 750, sphr, 781B

1шт.

See Fig. 155

1шт.

2

BN318720

BASKET ASSY

750 gallon spherical

1шт.

3

BN50267

BOLT,3/8"-16 x 2", Stainless Steel

8шт.

4

50283

BOLT Hex, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

5

BN50131

LOCK NUT

3/8-16, CTR, PL

8шт.

6

86992215

LOCK NUT,1/2"-13, GC

4шт.

7

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

8шт.

8

BN303545

SUPPORT

valve, 3 way

1шт.

9

BN50254

BOLT,3/8"-16 x 1", Stainless

2шт.

10

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

11

BN50146

WASHER,3/8", Stainless

2шт.
