(153) - FEED HOSE, RH/LH

Запчасти Case IH SPX3200B (153) - FEED HOSE, RH/LH (78) - SPRAYING

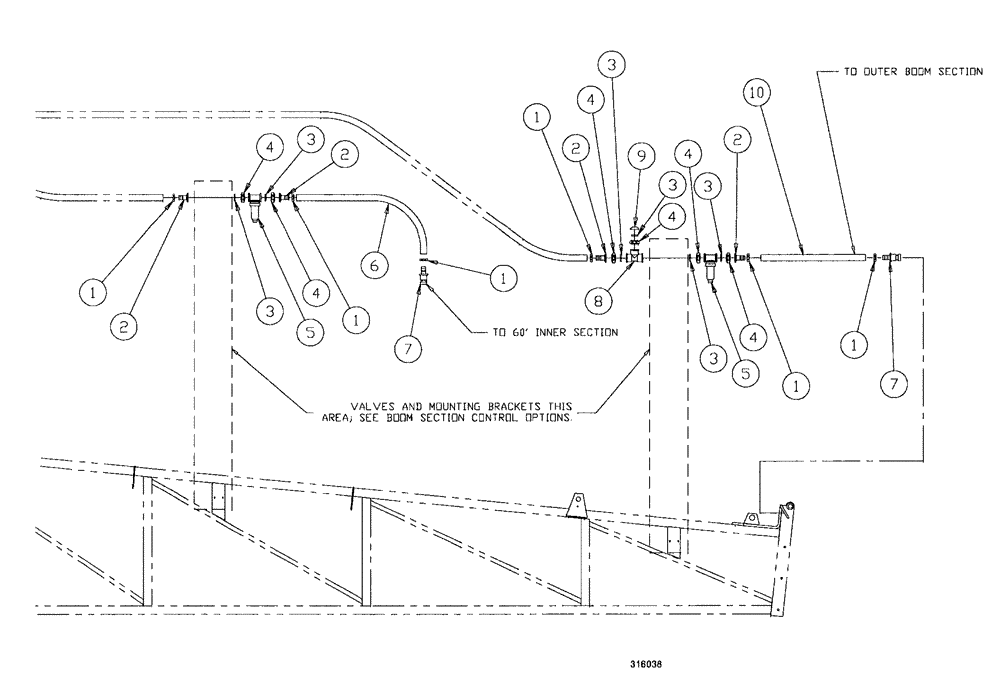

Схема запчастей Case IH SPX3200B - (153) - FEED HOSE, RH/LH (78) - SPRAYING
5
8
5
3
3
4
7
2
1
4
4
4
9
3
1
3
2
1
7
3
4
1
4
1
2
2
1
10
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN75990

HOSE CLAMP

#16, Stainless Steel

6шт.

2

BN304319

FITTING,1" Flange x 1" Hose Barb, Poly

1in. flng X 1in. barb

4шт.

3

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

6шт.

4

BN303203

CLAMP,1" Flange

1FL

6шт.

5

BN311711

STRAINER ASSY.

1" -50 mesh flange

2шт.

6

BN53756

HOSE,42.00"

1шт.

7

BN2406318

COUPLING

E 1" poly

2шт.

8

405787A1

TEE,1" Flanged Tee

poly 1 flange manifold

1шт.

9

BN306897

PLUG,1" Flange, Poly

1" Flange, Poly

1шт.

10

BN66636

HOSE, BULK

HOSE, METERS 1" EPDM x 65.0"

1шт.
