(147) - BY-PASS FITTINGS ASSEMBLY - ELLIPTICAL TANK

Запчасти Case IH SPX3200B (147) - BY-PASS FITTINGS ASSEMBLY - ELLIPTICAL TANK (78) - SPRAYING

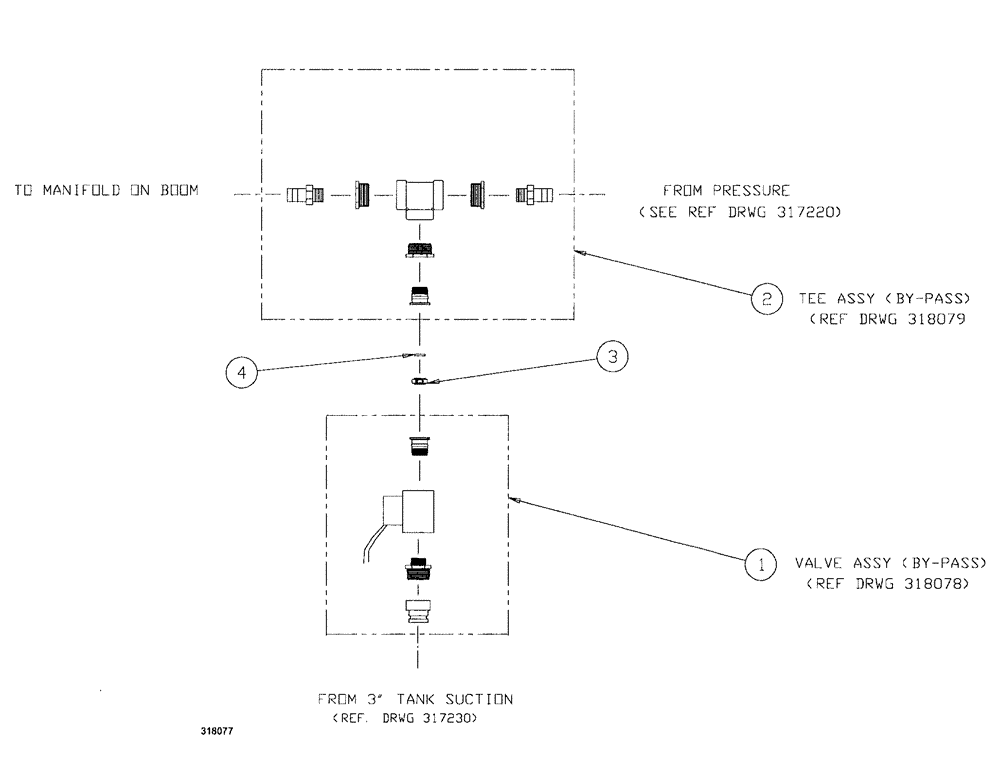

Схема запчастей Case IH SPX3200B - (147) - BY-PASS FITTINGS ASSEMBLY - ELLIPTICAL TANK (78) - SPRAYING
3
1
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN318078

VALVE

assembly, bypass

1шт.

2

BN318079

TEE

assembly, bypass

1шт.

3

BN313773

CLAMP,2" Full Port

2" Flange

1шт.

4

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

1шт.

Выбрано товаров: 4
