(145) - TANK SUCTION FITTINGS ASSEMBLY - ELLIPTICAL TANK

Запчасти Case IH SPX3200B (145) - TANK SUCTION FITTINGS ASSEMBLY - ELLIPTICAL TANK (78) - SPRAYING

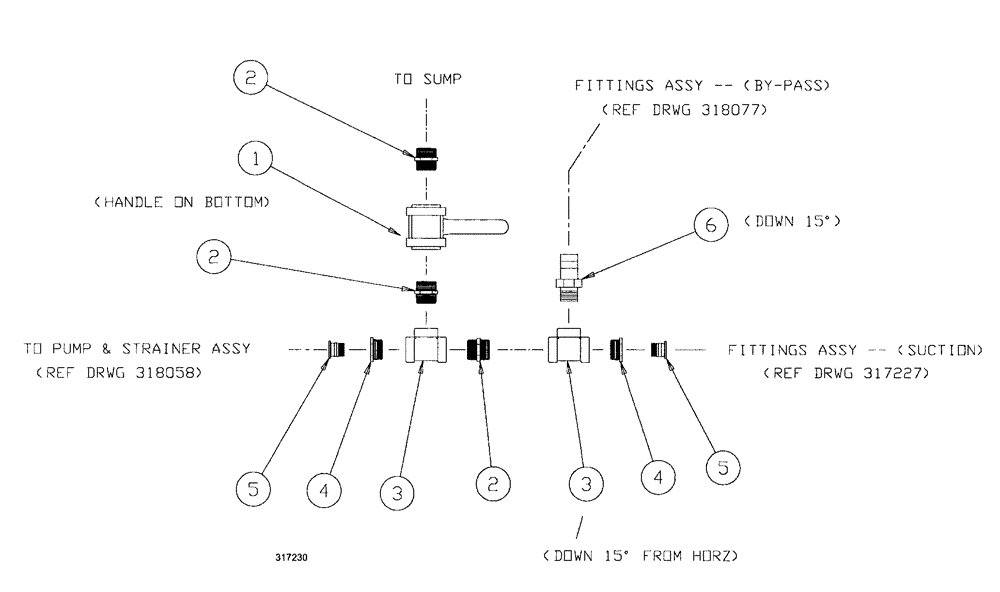

Схема запчастей Case IH SPX3200B - (145) - TANK SUCTION FITTINGS ASSEMBLY - ELLIPTICAL TANK (78) - SPRAYING
4
2
4
1
2
2
3
3
5
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN303208

VALVE

3" 2 way

1шт.

2

BN73788

NIPPLE, LUBE

NIPPLE 3" poly pipe short

3шт.

3

BN303209

TEE

3" poly

2шт.

4

BN85677

REDUCER

bushing, 3 x 2 poly

2шт.

5

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

2шт.

6

BN85678

FITTING

3" NPT x 3" Hose Barb, Poly

1шт.

Выбрано товаров: 6
