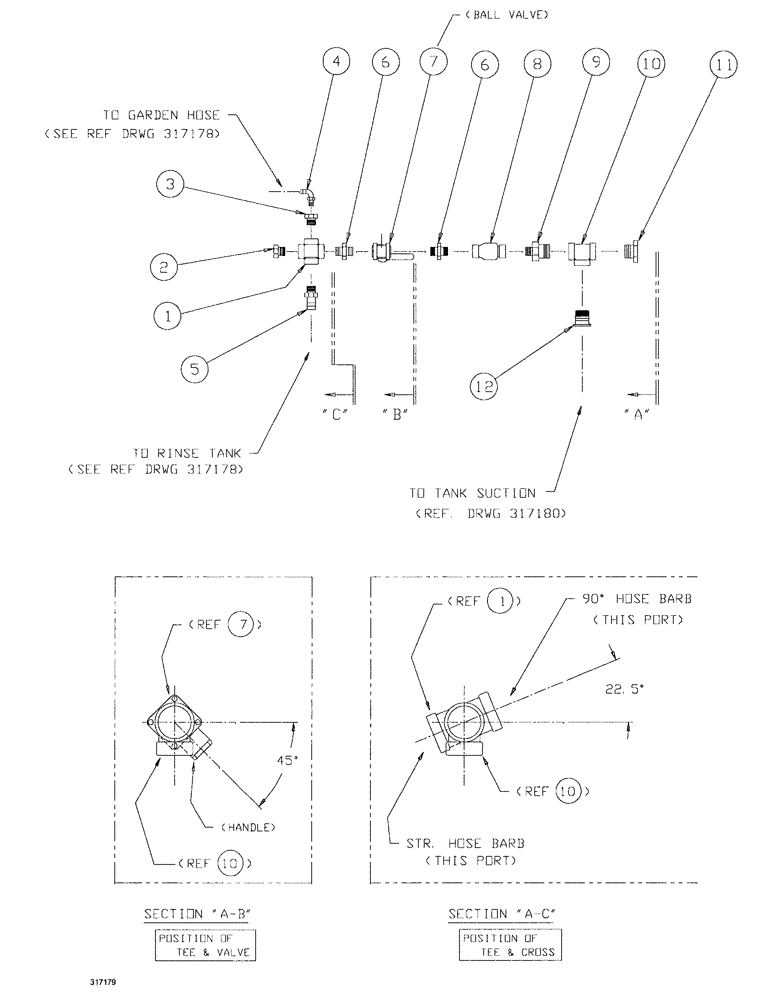

Запчасти Case IH SPX3200B (142) - SUCTION FITTINGS ASSEMBLY - SPHERICAL TANK (78) - SPRAYING

1

BN73661

FITTING

CROSS, 1 & 1/4 Use #315803

1шт.

2

BN73655

PLUG,1-1/4" Male NPT, Poly

1 & 1/4 NPT, poly pipe

1шт.

3

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

1шт.

4

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

1шт.

5

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

6

BN73659

FITTING

NIPPLE 1 1/4 x Pipe Poly

2шт.

7

BN73658

VALVE,1-1/4" Full Port Valve

Ball, 1-1/4", poly

1шт.

8

BN24567

CHECK VALVE

1 1/4" NPT

1шт.

9

BN317158

NIPPLE,2" Male NPT x 1-1/4" Male NPT

2" x 1 1/4" Reducer

1шт.

10

BN73779

TEE,2" Poly Tee

2" Poly Pipe

1шт.

11

BN73794

PLUG,2" Male NPT, Poly

2" Poly Pipe

1шт.

12

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

1шт.
