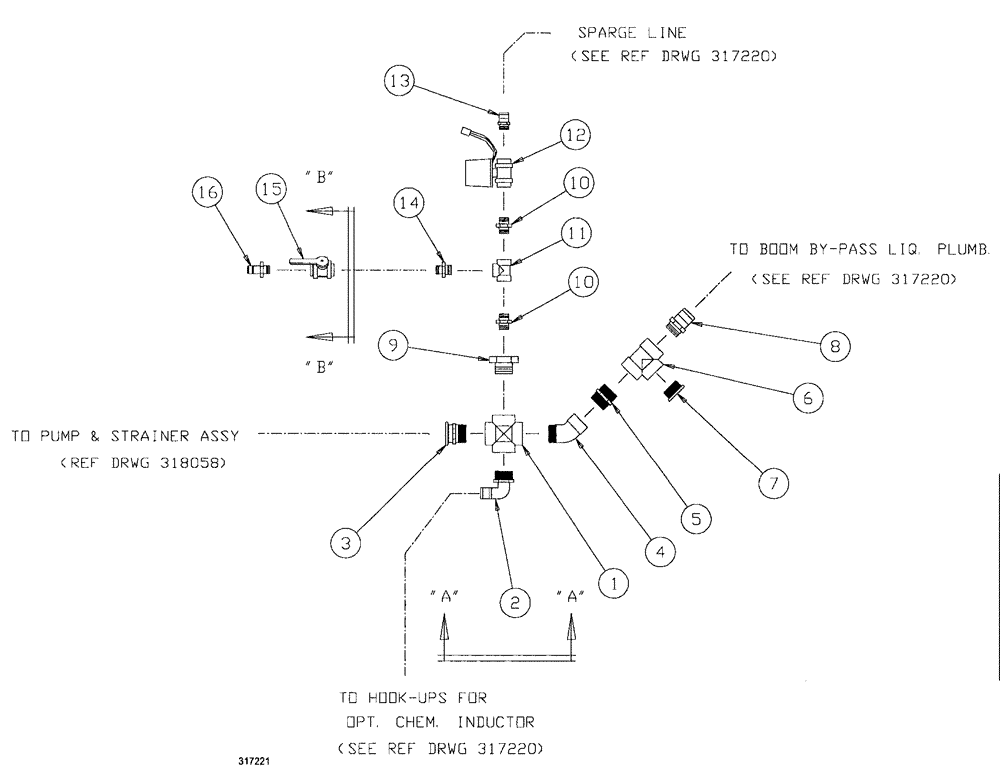

Запчасти Case IH SPX3200B (141) - PRESSURE FITTINGS ASSEMBLY - ELLIPTICAL TANK (78) - SPRAYING

1

BN73791

CROSS

2in. NPT poly

1шт.

2

BN314145

SHANK

HOSE, 90 2 NPT 1 1/2

1шт.

3

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

1шт.

4

BN73793

ELBOW,45 Degree Elbow, 2" Female NPT x 2" Female NPT, Poly

45 STR, 2in. NPT poly

1шт.

5

BN73783

NIPPLE

2" NPT Short Poly

1шт.

6

BN73779

TEE,2" Poly Tee

2" Poly Pipe

1шт.

7

BN73794

PLUG,2" Male NPT, Poly

2" Poly Pipe

1шт.

8

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

1шт.

9

BN307007

REDUCER

bushing, 2" x 1"

1шт.

10

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

11

BN73629

TEE

1" Poly Pipe

1шт.

12

87546542

HYDRAULIC VALVE

Electric 1"

1шт.

13

BN53666

FITTING

HOSEBARB, 1 NPT X 3/4 hose

1шт.

14

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

1шт.

15

BN73564

VALVE

3/4" Ball Poly 2 Way

1шт.

16

BN73561

FITTING

BARB, 3/4 NPT X 3/4 HS

1шт.
