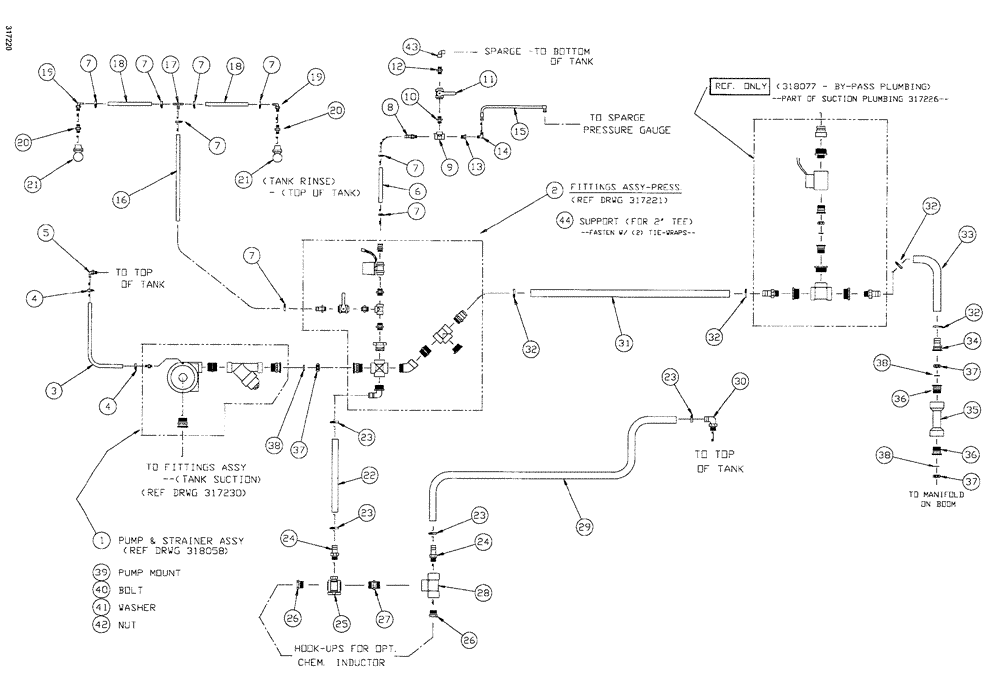

Запчасти Case IH SPX3200B (137) - PRESSURE GROUP - ELLIPTCAL TANK (78) - SPRAYING

1

NSS

NOT SOLD SEPARAT

ASSY., pump and strainer, liq.

1шт.

See Fig. 149

1шт.

2

NSS

NOT SOLD SEPARAT

ASSY., fittings, press., ellip.

1шт.

See Fig. 141

1шт.

3

BN53785

HOSE,74.00"

1шт.

4

BN76094

HOSE CLAMP

SS #M4

2шт.

5

BN73412

ELBOW,90 Degree,1/4" MPT x 1/4" HB

1/4" NPT x 1/4" Hose Barb, Poly

1шт.

6

BN53851

HOSE, BULK

HOSE, METERS EPDM, 3/4" ID x 28.5"

1шт.

7

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

8шт.

8

BN73561

FITTING

BARB, 3/4 NPT X 3/4 HS

1шт.

9

BN73560

TEE

PIPE, poly, 3/4 in.

1шт.

10

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

1шт.

11

BN73564

VALVE

3/4" Ball Poly 2 Way

1шт.

12

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

1шт.

13

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.

14

BN53734

ELBOW

FT, 90° 1/4" NPT x 9/16" JIC

1шт.

15

BN67392

HOSE

3/8" x 144" EPDM

1шт.

16

BN317239

HOSE, BULK

HOSE, METERS 3/4" x 87.0" EPDM

1шт.

17

BN317236

TEE

barb, hose, 3/4"

1шт.

18

BN53857

HOSE,0.75" ID x 26.00"

Flexible

2шт.

19

BN73684

ELBOW

90° 1" MPT x 3/4" Barb

2шт.

20

BN73648

NIPPLE

1" Short Poly Pipe

2шт.

21

29568

NOZZLE

Rinse 360 Degree

2шт.

22

BN317243

HOSE,1.50" ID x 31.00"

EPDM

1шт.

23

BN53811

CLAMP

2" ID, T-bolt

4шт.

24

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

2шт.

25

BN69410

VALVE,3/8-16 Banjo Bolt X 20MM Long Zinc Plt.

3-way, 1.5" Black

1шт.

26

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

2шт.

27

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

1шт.

28

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

29

BN301616

HOSE

1.5" EPDM X 60"

1шт.

30

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

31

BN53847

HOSE,2.00" ID x 23.50"

1шт.

32

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

4шт.

33

BN318119

HOSE,143.00"

EPDM

1шт.

34

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange X 2" Hose Barb, Poly

1шт.

35

BN306098

METER

flow- RFM 100

1шт.

36

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

2шт.

37

BN313773

CLAMP,2" Full Port

2" Flange

3шт.

38

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

3шт.

39

BN317073

MOUNTING PARTS

pump, SS, ellip

1шт.

40

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

41

BN50146

WASHER,3/8", Stainless

8шт.

42

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

43

BN73742

ELBOW

90º x 1 Poly

1шт.

44

BN318420

SUPPORT

assembly, fittings, press.

1шт.
