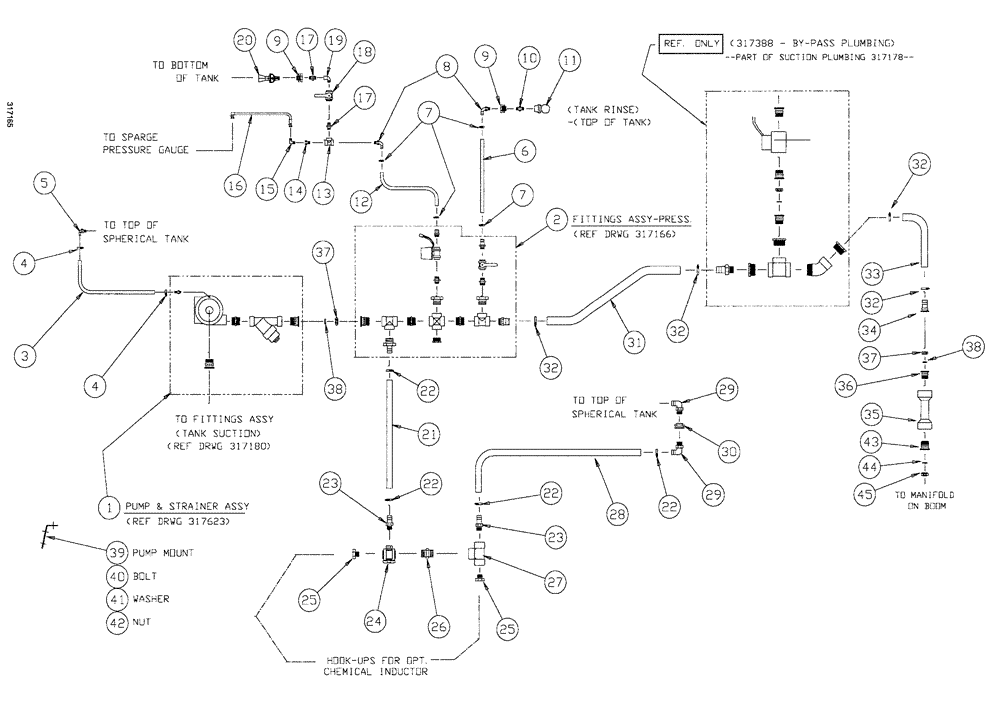

Запчасти Case IH SPX3200B (136) - PRESSURE GROUP - SPHERICAL TANK (78) - SPRAYING

1

NSS

NOT SOLD SEPARAT

ASSY., pump and stariner, liq.

1шт.

See Fig. 148

1шт.

2

NSS

NOT SOLD SEPARAT

ASSY., fitting, press shere

1шт.

See Fig. 140

1шт.

3

BN318772

HOSE,0.25" ID x 126.50"

EPDM

1шт.

4

BN76094

HOSE CLAMP

SS #M4

2шт.

5

BN73412

ELBOW,90 Degree,1/4" MPT x 1/4" HB

1/4" NPT x 1/4" Hose Barb, Poly

1шт.

6

BN317167

HOSE,0.38" ID x 96.00"

EPDM

1шт.

7

BN75978

HOSE CLAMP

SS, No. 12 adj., HS, .56-1.25

4шт.

8

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

2шт.

9

406148A1

FITTING

bulkhead 3/4" dfpt c/w epdm gasket

2шт.

10

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

1шт.

11

29568

NOZZLE

Rinse 360 Degree

1шт.

12

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

1шт.

13

BN73560

TEE

PIPE, 3/4in. poly

1шт.

14

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.

15

BN53734

ELBOW

FT, 90° 1/4" NPT x 9/16" JIC

1шт.

16

BN67392

HOSE

3/8" x 144" EPDM

1шт.

17

BN73565

NIPPLE,3/4" Male NPT x 3/4" Male NPT, Poly

3/4" Short Pipe, Poly

2шт.

18

BN73564

VALVE

3/4" Ball Poly 2 Way

1шт.

19

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

90, Street, 3/4" Poly

1шт.

20

BN304248

AGITATOR

Tank Mixing

1шт.

21

BN53762

HOSE,11.50"

1шт.

22

BN53811

CLAMP

2" ID, T-bolt

4шт.

23

413083A1

PIPE FITTING,1-1/2" Male Thread x 1-1/2" Hose Barb

Hose Barb, 1 1/2"

2шт.

24

BN69410

VALVE,3/8-16 Banjo Bolt X 20MM Long Zinc Plt.

3-way, 1.5" Black

1шт.

25

BN73731

PLUG,1-1/2" Male NPT, Poly

1 1/2" Poly Pipe

2шт.

26

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1 1/2" Short Poly

1шт.

27

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

28

BN318773

HOSE,1.50" ID x 76.00"

EPDM

1шт.

29

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

2шт.

30

BN73733

FITTING

1 1/2" Bulkhead

1шт.

31

BN317593

HOSE,2.00" ID x 15.00"

EPDM

1шт.

32

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

4шт.

33

BN317594

HOSE,2.00" ID x 96.00"

EPDM

1шт.

34

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange X 2" Hose Barb, Poly

1шт.

35

BN306098

METER

flow- RFM 100

1шт.

36

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

1шт.

37

BN313773

CLAMP,2" Full Port

2" Flange

2шт.

38

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

2шт.

39

BN317611

MOUNTING PARTS

pump

1шт.

40

BN50254

BOLT,3/8"-16 x 1", Stainless

4шт.

41

BN50146

WASHER,3/8", Stainless

8шт.

42

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

43

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

1шт.

44

BN303199

CLAMP,2" Flange

2" Standard Flange

1шт.

45

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

1шт.
