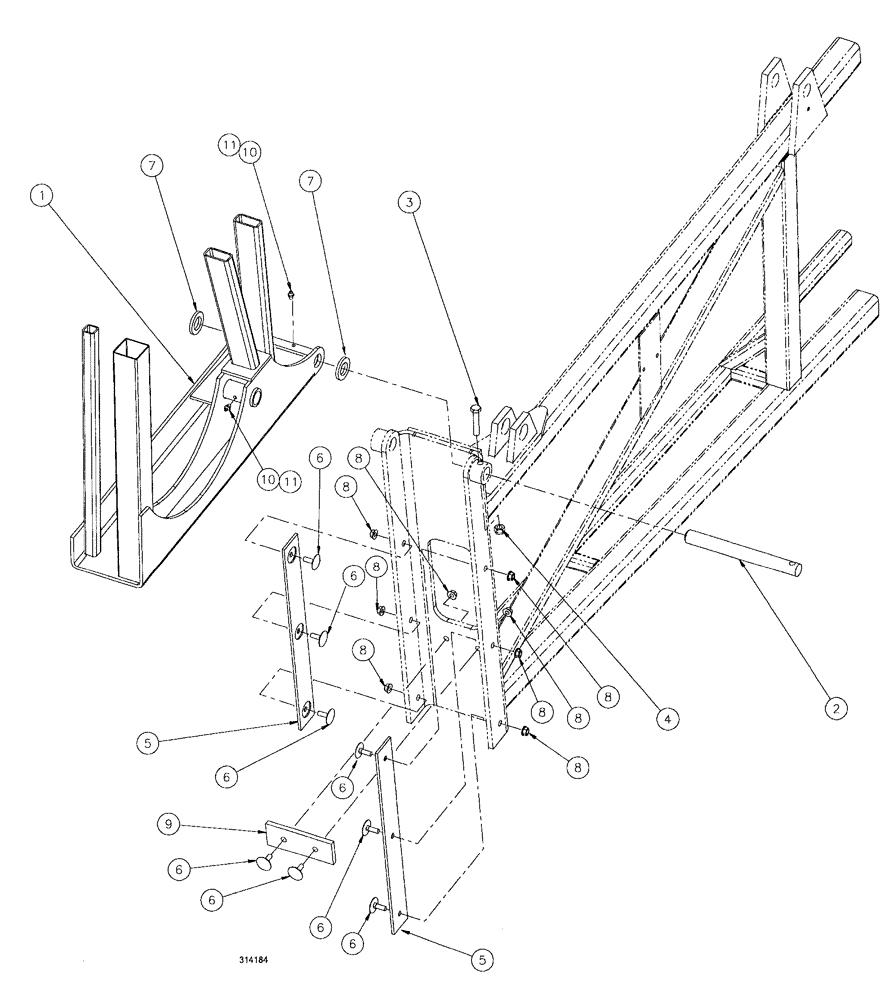

Запчасти Case IH SPX3200B (128) - OUTER BOOM ASSEMBLY, LH - 80 (78) - SPRAYING

1

BN320281

BOOM

LH Outer, 80'

1шт.

2

BN307893

PIN,25.4mm OD x 236.47mm L

V-FOLD

1шт.

3

BN301332

BOLT,Hex, M10 x 55, 10.9

1шт.

4

BN304419

NUT

M10-1.5, NLN, 10.9

1шт.

5

BN69856

PLATE

LINER, plastic, 3/16 x 2 x 17.50

2шт.

6

BN50014

BOLT

5/16"-18 x .75, EH

8шт.

*7

87016608

WASHER,25.8mm ID x 44.5mm OD x 5mm Thk

2шт.

Part only available through Case's North American Parts Organization (NAPO).

1шт.

8

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

8шт.

9

BN305437

BUMPER

RUBBER, 2 X 6 X .63

1шт.

10

BN302051

NIPPLE, LUBE,M8 x 1, Straight

NIPPLE 8 mm x 1 Straight

2шт.
