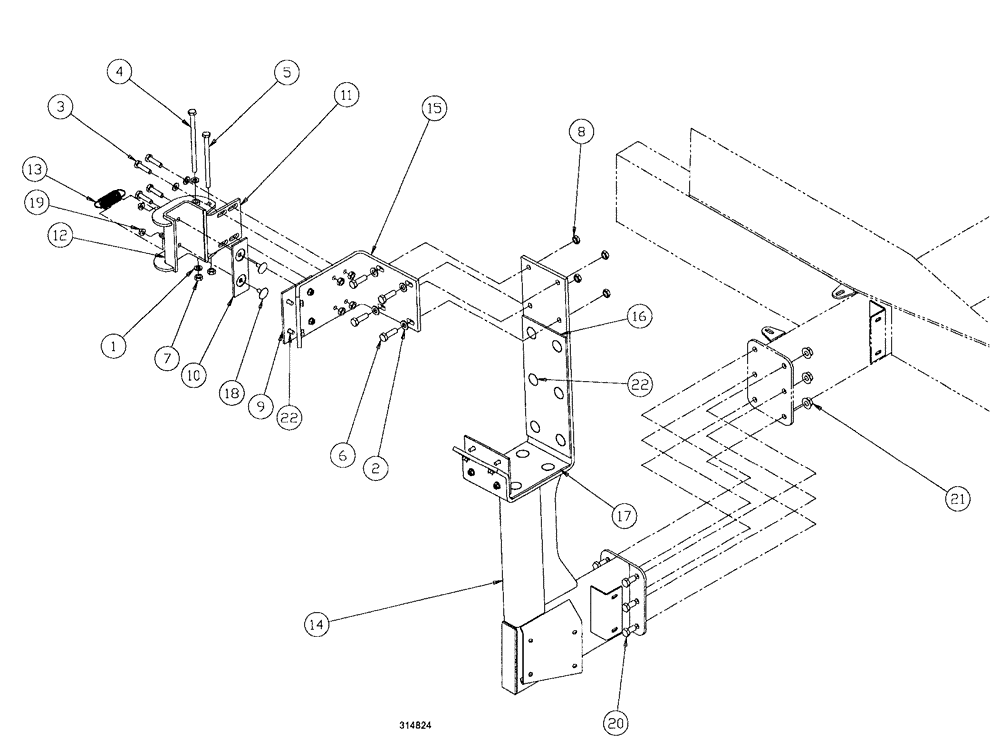

Запчасти Case IH SPX3200B (123) - RH CRADLE GROUP (78) - SPRAYING

1

BN300499

WASHER,M10, 10.9

6шт.

2

BN300500

WASHER,M12, 10.9

4шт.

3

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

4шт.

4

BN301063

BOLT,Hex, M10 x 170, 8.8

1шт.

5

86639150

BOLT,Hex, M10 x 150mm, Cl 10.9

1шт.

6

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

4шт.

7

BN304419

NUT

M10-1.5, NLN, 10.9

6шт.

8

100038

NUT,M12 x 1.75, Cl 8

4шт.

9

BN310397

PAD

cradle plastic

2шт.

10

BN311805

PLATE

liner, cradle lock

1шт.

11

BN311847

CLAMP

cradle, hinge

1шт.

12

86986801

CRADLE

Top Boom

1шт.

13

BN313580

SPRING

cradle lock

1шт.

14

BN314791

CRADLE

RH

1шт.

15

BN314796

PLATE

lock, cradle

1шт.

16

BN314797

PAD

Cradle Side

1шт.

17

BN314802

PAD, RUBBER

cradle, lower

1шт.

18

BN50014

BOLT

5/16"-18 x .75, EH

2шт.

19

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

20шт.

20

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

21

86992215

LOCK NUT,1/2"-13, GC

6шт.

22

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

18шт.
