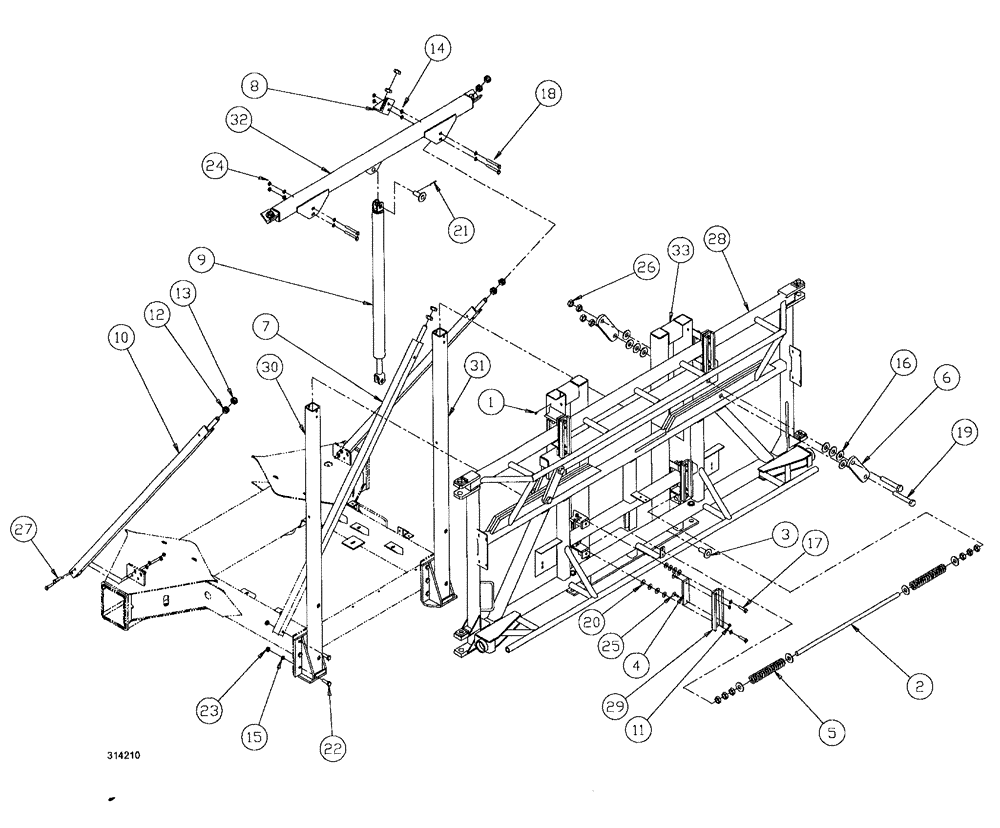

Запчасти Case IH SPX3200B (118) - MAST GROUP (78) - SPRAYING

BN311768

WARNING SIGN

ASSY., SMV., with hardware

1шт.

311862A1

PLATE

assembly, slow moving vehicle

1шт.

» Indicates parts of an "assembly"

1шт.

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

2шт.

» Indicates parts of an "assembly"

1шт.

BN50222

BOLT

5/16-18 x .75, TH, SS, PH

2шт.

» Indicates parts of an "assembly"

1шт.

1

BN10465

NIPPLE, LUBE,1/4"-28 st

NIPPLE

8шт.

2

BN21197

SHAFT

1" x 36"

1шт.

3

86632567

HEADED PIN,30.14mm OD x 66.55mm L

2шт.

4

BN23267A

SLIDER

Nylatron .5 x 2.0 x 7.0

8шт.

5

BN27328

SPRING

Compression, 1.75" od x11"

2шт.

6

BN29505

HANGER

3/4 X 3 HRFB X 10.50

4шт.

7

BN315624

SUPPORT

rod

1шт.

8

BN320577

MOUNTING PLATE

Upper

1шт.

9

BN317250

CYLINDER,Double Acting, 31.75mm Rod, 1270mm Stroke

HYD, 2.5 x 50 x 1.25

1шт.

342104A1

VALVE

Counterbalance 3000 psi

2шт.

» Indicates parts of an "assembly"

1шт.

344010A1

SEAL KIT

for T-11A cavity

1шт.

Service part for part number 313220

1шт.

Includes 3 o-rings and 3 back-up washers

1шт.

NSS

NOT SOLD SEPARAT

CYL HYD., 2.5 X 50 X 1.25

1шт.

» Indicates parts of an "assembly"

1шт.

See Fig. 189

1шт.

10

BN323885

SUPPORT

Boom

2шт.

11

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

16шт.

12

BN50092

NUT

Hex, 1"-8 UNC, Plated, G5

6шт.

13

87553819

JAM NUT

1"-8 Hex, Jam

12шт.

14

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531 x 1.062 x 0.134 HTS DOR HDN

20шт.

15

BN247111

WASHER

5/8, G8

11шт.

16

50161

WASHER Hex, 3/4"-10 x 5", G5

20шт.

17

50288

BOLT Hex, 1/2"-13 x 2", G5

8шт.

18

87996

BOLT,Hex, 1/2" - 13 x 4 1/2", Gr 5

4шт.

19

BN50363

BOLT

1-14 X 6, HH, 5, PL

4шт.

20

BN300176

WASHER

Flat, 1/2, G8

32шт.

21

BN50601

PIN, SPLIT (COTTER)

PIN, COTTER 3/16" x 3/4", Type E

2шт.

22

50726

BOLT Hex, 5/8"-18 x 2", G5

12шт.

23

BN50775

LOCK NUT

5/8"-18 UNF Center

12шт.

24

86992215

LOCK NUT,1/2"-13, GC

16шт.

25

BN50930

BOLT,5/16"-18 x 1.5", EH, DOR

16шт.

26

425-1516

JAM NUT,Jam, 1"-14, G5

8шт.

27

BN55235

BOLT,Hex, 1/2"-13 x 1 1/2", G8, Full Thd

4шт.

28

BN66516

BOOM

Weldment Center Section 90'

1шт.

29

BN67049

HANGER

Weldment, Mount Center Section

4шт.

30

BN318507

RAIL

slide, LH

1шт.

31

BN315612

RAIL ASSY.

slide

1шт.

32

BN317149

MOUNTING PARTS

hanger

1шт.

33

BN318505

RACK

boom

1шт.
