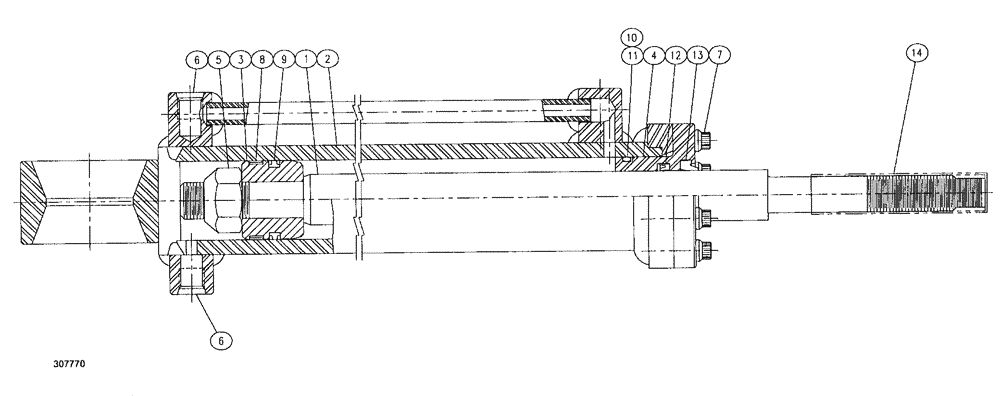

Запчасти Case IH SPX3200B (117) - ACTIVE SUSPENSION (78) - SPRAYING

1

BN318059

PISTON ROD

1шт.

2

BN318060

TUBE

assembly, and butt

1шт.

3

BN318061

PISTON

1шт.

4

BN318062

GLAND

1шт.

5

BN318063

LOCK NUT

1шт.

6

BN318064

PLUG

PORT, ORB

2шт.

7

BN318065

12 PT SCREW,Flg

FLANGE, 12 point

8шт.

BN320448

PACKING

Kit, Cylinder

1шт.

Includes Refs. 8 - 14

1шт.

8

NSS

NOT SOLD SEPARAT

BEARING RING

1шт.

9

NSS

NOT SOLD SEPARAT

T SEAL, PISTON

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING

1шт.

11

NSS

NOT SOLD SEPARAT

BU-WASHER

1шт.

12

NSS

NOT SOLD SEPARAT

U-CUP

1шт.

13

NSS

NOT SOLD SEPARAT

WIPER

1шт.

14

NSS

NOT SOLD SEPARAT

END CAPS

1шт.
