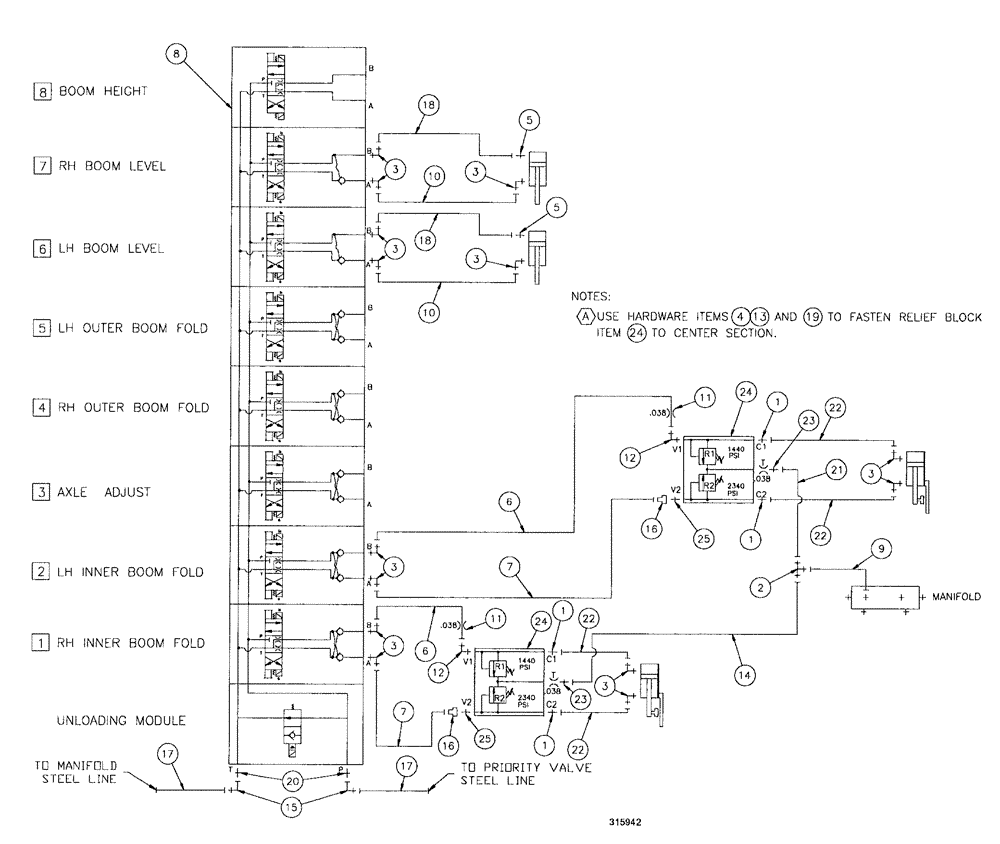

Запчасти Case IH SPX3200B (096) - BOOM (78) - SPRAYING

1

BN21249

ADAPTER,3/4" - 16 ORFS x 7/16" - 20 JIC

4шт.

2

BN22159

TEE

3/4-16 37°

1шт.

3

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

14шт.

4

86637953

WASHER,0.34" ID x 0.69" OD x 0.09" Thk

4шт.

5

BN51589

FITTING

STR.-9/16-18 O-Ring x 7/16-20 JIC

2шт.

6

BN315468

HOSE ASSY.

4 X 150"

2шт.

7

BN315469

HOSE ASSY.

4 X 150"

2шт.

8

NSS

NOT SOLD SEPARAT

VALVE, 8-bank, directional

1шт.

See Fig. 102

1шт.

9

BN315697

HOSE ASSY.

8 x 190"

1шт.

10

BN316115

HOSE ASSY.

4 x 200"

2шт.

11

BN316137

ORIFICE

-6 X -6, .038

2шт.

12

BN445005

ADAPTER

Adapter - 90º 37 FLR 08

2шт.

13

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

4шт.

14

BN53027

HOSE ASSY.

1/2" x 36"

1шт.

15

BN53707

FITTING

90° 3/4-16 JIC

2шт.

16

BN53714

FITTING

Reducer - 3/4-16 JIC F x 7/16-20 JIC M

2шт.

17

BN53818

HOSE

1/2" ID x 66", 100R2

2шт.

18

BN54175

HOSE

1/4" x 182", 100R1

2шт.

19

BN55360

LOCK NUT

5/16"-18, NLN, G5

4шт.

20

BN60440

ADAPTER

O-RING, str.

2шт.

21

BN67131

HYDRAULIC HOSE

1/2" 100R1 x 44"

1шт.

22

BN67538

HOSE ASSY.

1/4" ID x 24"

4шт.

23

BN68659

ORIFICE

ASSY., .038

2шт.

BN68540

FITTING

rework

1шт.

» Indicates parts of an "assembly"

1шт.

BN444004

FITTING

ADAPTER, O-RING, 37 flare

1шт.

» Indicates parts of an "assembly"

1шт.

BN68658

PLUG

Orifice, .038

1шт.

» Indicates parts of an "assembly"

1шт.

BN68543

PLUG

hex, int., 1/4 NPT

1шт.

» Indicates parts of an "assembly"

1шт.

24

NSS

NOT SOLD SEPARAT

BLOCK, relief, double

2шт.

See Fig. 107

1шт.

25

BN444004

FITTING

ADAPTER, O-RING, 37 flare

2шт.
