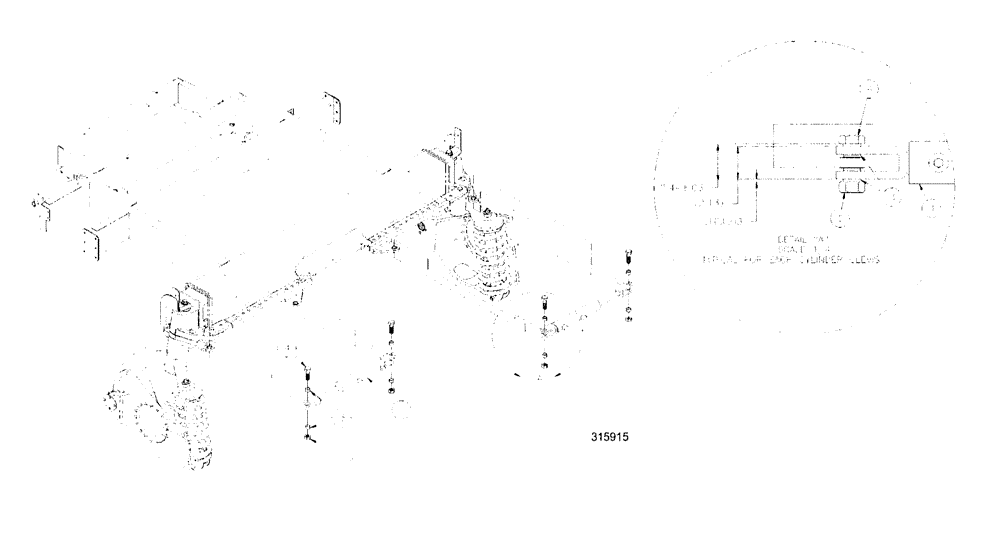

Запчасти Case IH SPX3200 (04-010) - STEERING CYLINDER GROUP, 2WS (41) - STEERING

1

NSS

NOT SOLD SEPARAT

CYL. HYD., 2.50 x 10 x 1.25

2шт.

See Fig. 07-010

1шт.

2

232-41414

NUT

7/8"-9 GR C 1-way, all metal

4шт.

3

BN321531

BUSHING,22.23mm ID x 29.08mm OD x 17.14mm L

BUSHING, spring

8шт.

4

426-1452

BOLT,Hex, 7/8" - 9 x 3-1/4", Gr 8

4шт.
