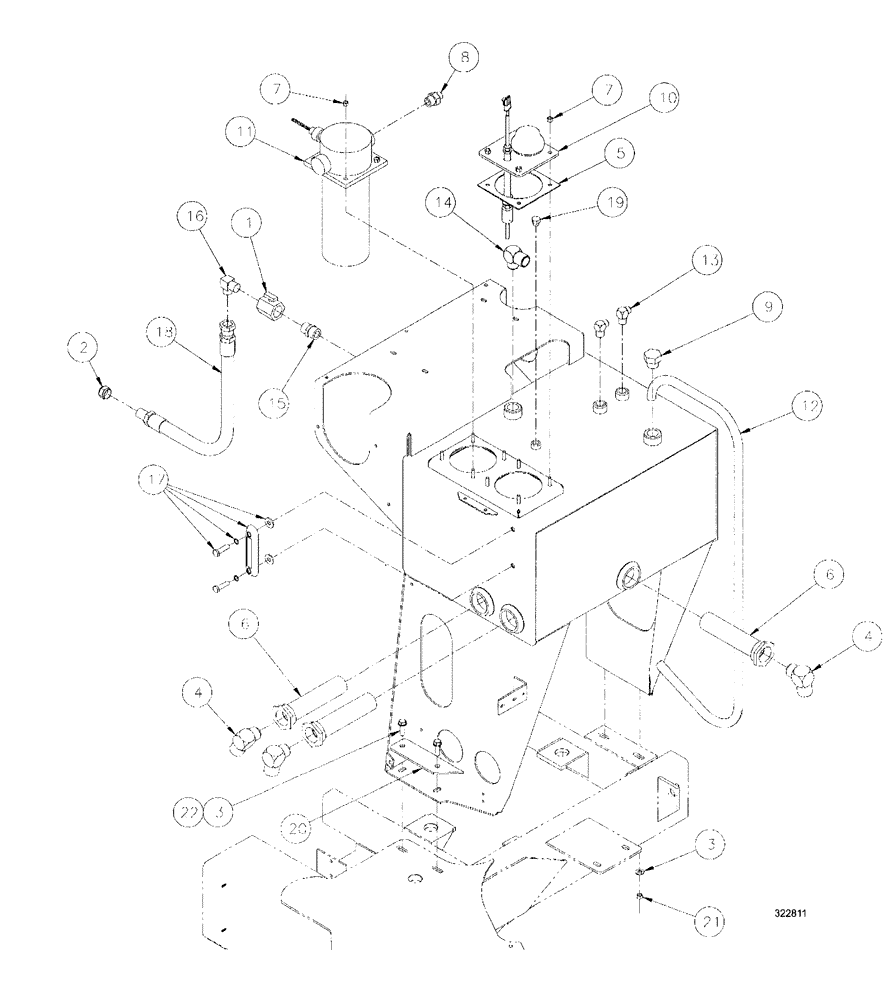

Запчасти Case IH SPX3200 (06-016) - OIL TANK GROUP (35) - HYDRAULIC SYSTEMS

1

BN53473

VALVE,1" NPT

SS-Ball (2-Way) 1" NP

1шт.

2

BN22240

CROWN NUT,1-1/16"-12 , 37 Degree

1шт.

3

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

8шт.

4

BN302577

ELBOW

20MOR-20MB x 90

3шт.

5

BN302982

GASKET,3.17mm Thk

PLATE, cover

1шт.

6

BN303528

STRAINER ASSY.

32MB x 20FB, 100

3шт.

7

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

8шт.

8

BN53927

ADAPTER

90º 16 O-Ring-12 JIC

1шт.

9

BN60479

PLUG

15/16-12, o-ring hex

1шт.

10

BN322802

SWITCH

Level Temp Grp

1шт.

BN16237

TUBE

Poly, Shrink, 1/4" Bulk

10шт.

BN303121

ELEC CONNECTOR

CONN. ASSY., 3 WPAK TWR

1шт.

Indicates part of an assembly

1шт.

BN52326

RETAINER

HUB, seal, 3/8NPT, 236MA x DIA.

1шт.

Indicates part of an assembly

1шт.

BN305129

PROXIMITY SWITCH

INDICATOR, oil level temp.

1шт.

Indicates part of an assembly

1шт.

BN323451

PLATE

temp. level

1шт.

Indicates part of an assembly

1шт.

BN322130

REF., ASSY., wiring

1шт.

Indicates part of an assembly

1шт.

BN304339

VALVE

VALVE, air filter, pressure

1шт.

Indicates part of an assembly

1шт.

11

BN313777

FILTER

FILTER, OIL assembly, in tank

1шт.

NSS

NOT SOLD SEPARAT

TANK, filter, SAE24, 6ABS

1шт.

Indicates part of an assembly

1шт.

See Fig. 06-042

1шт.

BN311360

INDICATOR

LINE, return

1шт.

Indicates part of an assembly

1шт.

12

BN322808

RESERVOIR, HYDRAULIC

Tank

1шт.

13

BN445001

FITTING

Adapter, 90°1 1/16-12 O Ring x 1 1/16-12 JIC

2шт.

14

BN51621

FITTING

Elbow 90, O-Ring 37 Flare

1шт.

15

BN51656

ADAPTER

FT, STR, 1 NPTF, Male

1шт.

16

BN53809

ELBOW

Adapter, 90°, 1" NPT x 1/16" JIC

1шт.

17

BN322594

GAUGE

sight, w/ temperature

1шт.

18

BN54199

HOSE,0.75" ID x 30.00", SAE 100R1

1шт.

19

BN446048

PLUG

hex, O-RING, -6, 9/16-18

1шт.

20

BN300172

PLATE

2шт.

21

100038

NUT,M12 x 1.75, Cl 8

4шт.

22

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

4шт.
