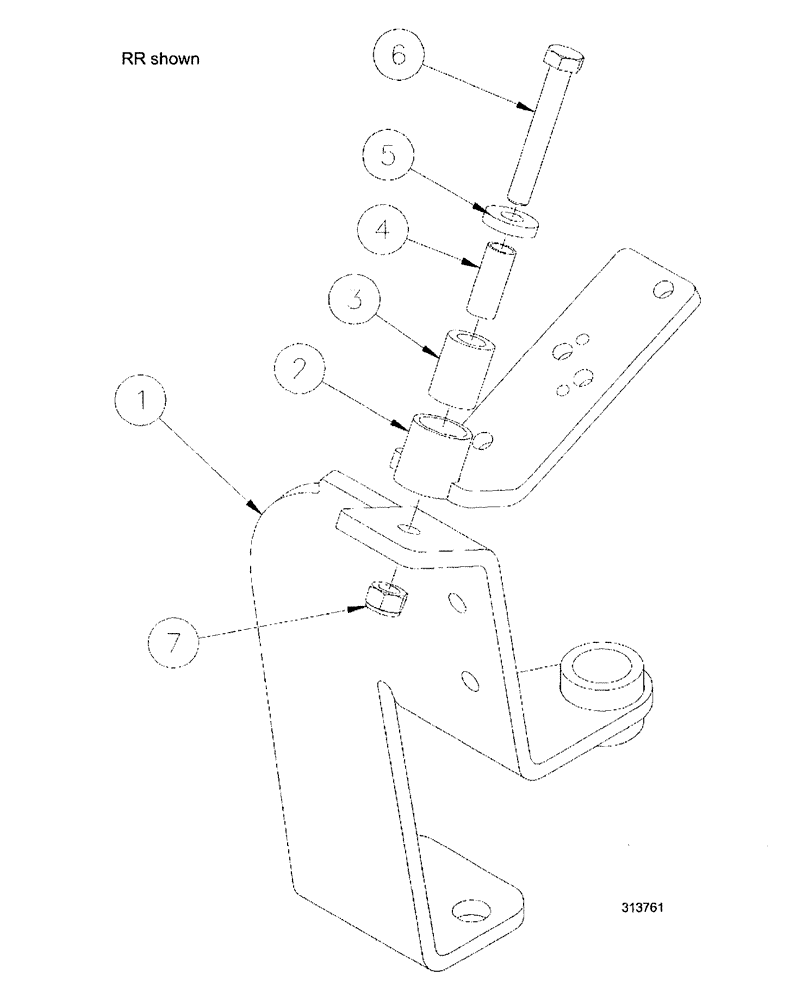

Запчасти Case IH SPX3200 (04-039) - HOSE PIVOT MOUNT ASSEMBLY - RF (35) - HYDRAULIC SYSTEMS

1

BN313661

MOUNTING PARTS

pivot, LH

1шт.

2

BN313649

MOUNTING PARTS

hose, LH

1шт.

BN313611

MOUNTING PARTS

hose, RH

1шт.

3

BN313618

BUSHING,16.15mm ID x 26.42mm OD x 35.05mm L

UHMW

1шт.

4

BN313619

BUSHING,12.7mm ID x 16mm OD x 38.1mm L

tube

1шт.

5

BN313639

WASHER

M12, 30 mm od

1шт.

6

43158

BOLT,Hex, M12 x 80mm, Cl 8.8

1шт.

7

100038

NUT,M12 x 1.75, Cl 8

1шт.
