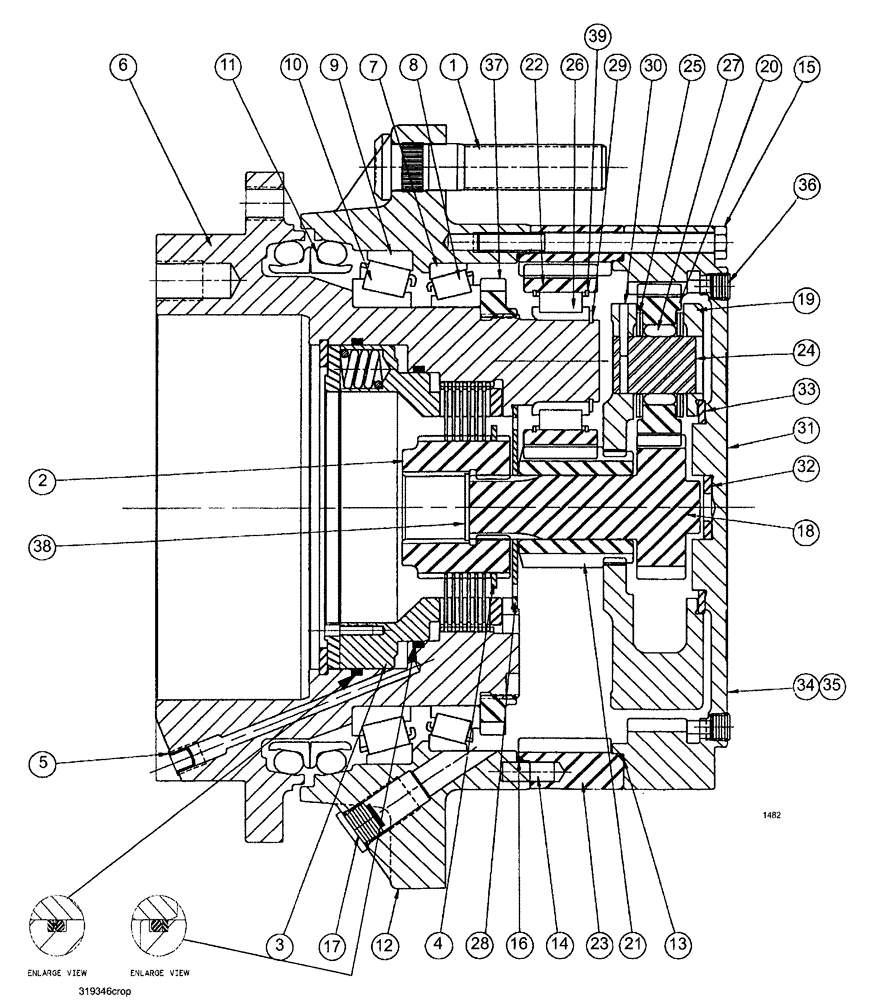

Запчасти Case IH SPX3200 (05-002) - HUB ASSEMBLY 22:1, 27:1 (29) - HYDROSTATIC DRIVE

0

BN319346

HUB ASSY.

Complete Front Hub, 22:1 Ratio, Not Shown

1шт.

0

BN319347

HUB ASSY.

Complete Rear Hub, 27:1 Ratio, Not Shown

1шт.

1

BN311380

STUD

10шт.

2

BN318439

COUPLING

1шт.

3

BN311382

BRAKE

Input Kit, W/ Discs

1шт.

4

BN311383

SNAP RING

Ext.

1шт.

5

BN311384

PLUG

PLASTIC

1шт.

6

BN319366

SPINDLE

HUB, 22:1

1шт.

7

BN311386

BEARING, CUP

tapered-cup

1шт.

8

BN311387

ROLLER BEARING

TAPERED

1шт.

9

BN311388

BEARING, CUP

tapered

1шт.

10

BN311389

ROLLER BEARING

tapered

1шт.

11

BN311390

SEAL

face

1шт.

12

BN311391

HOUSING

1шт.

13

BN311392

O-RING

1шт.

14

BN311393

PIN

dowel

2шт.

15

BN311394

BOLT

hex-unc

20шт.

16

BN311395

O-RING

1шт.

17

BN311396

PLUG

pipe special

2шт.

18

BN311397

GEAR

sun (22:1)

1шт.

BN311398

GEAR

sun (27:1)

1шт.

Indicates an "or" situation.

1шт.

19

BN311399

HUB CARRIER

(22:1)

1шт.

BN311400

HUB CARRIER

(27:1)

1шт.

Indicates an "or" situation.

1шт.

20

BN311410

PLANETARY GEAR

(22:1)

3шт.

BN311411

PLANETARY GEAR

(27:1)

3шт.

21

BN311413

GEAR

sun

1шт.

22

BN318442

GEAR, PLANETARY

GEAR, PLANET

3шт.

23

BN311415

GEAR, RING

RING, GEAR

1шт.

24

BN311416

SHAFT

planet

3шт.

25

BN311417

WASHER, THRUST

12шт.

26

BN318443

BEARING, ROLLER, CYL

cylinder, bearing

3шт.

27

BN311419

BEARING, NEEDLE

57шт.

28

BN311420

SPACER

thrust

1шт.

29

BN311421

RETAINER

ring-ext

3шт.

30

BN311422

GROOVED PIN

3шт.

31

BN311423

COVER

Plate

1шт.

32

BN311424

WASHER, THRUST

1шт.

33

BN311425

THRUST WASHER

1шт.

34

BN311426

PLATE

ID

1шт.

35

BN311427

SCREW

drive

2шт.

36

BN311430

PLUG

Pipe, Magnetic, NPT, Used on Early SN Hubs

3шт.

36

47370292

MAGNETIC PLUG

O Ring Style, Used on Later SN Hubs

3шт.

37

BN311431

BEARING LOCK NUT

1шт.

38

BN318444

RETAINER

ring, int.

1шт.

39

BN318445

RETAINER

ring, ext.

6шт.

Not Shown

1шт.

BN304226

BOLT

M16-2 x 45, FH, 10.9

68шт.

Not Shown

1шт.

BN305432

ADAPTER

4MFFOR-M12 x 1.5

4шт.

Not Shown

1шт.

BN306152

SPACER

HUB, wheel

4шт.

Not Shown

1шт.

BN315229

WHEEL NUT

Flange, Wheel, 22 mm

40шт.

Not Shown

1шт.

87027134

FLUID

Oil, SAE 85W140, MS1616NH 1QT

6шт.

Not Shown

1шт.
