(06-023) - AXLE ADJUST GROUP

Запчасти Case IH SPX3200 (06-023) - AXLE ADJUST GROUP (27) - REAR AXLE SYSTEM

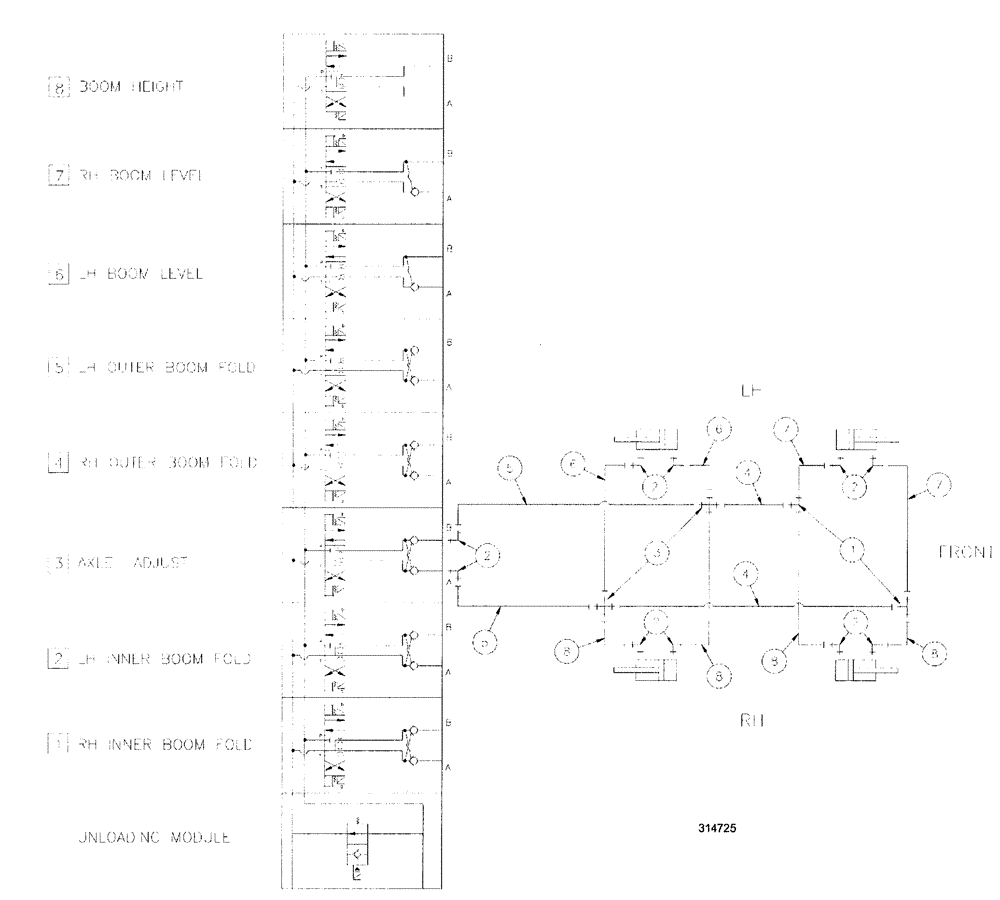

Схема запчастей Case IH SPX3200 - (06-023) - AXLE ADJUST GROUP (27) - REAR AXLE SYSTEM
7
8
2
6
3
8
4
2
5
2
4
2
5
2
8
8
6
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN21422

TEE

7/16-20 JIC

2шт.

2

BN22160

ELBOW

90° 9/16-18 O-Ring X 7/16-20 JIC

10шт.

3

BN54043

ADAPTER

cross, 1/4" JIC

2шт.

4

BN55142

HOSE

CLAMP, vinyl coated 5/8"

2шт.

5

BN53824

HOSE,6.35mm ID x 965.2mm L, SAE 100R1

1/4" ID x 38" 100R1

2шт.

6

BN55112

HOSE ASSY.

1/4" x 32"

2шт.

7

BN46351

SLEEVE,6.35mm ID x 1092.2mm L, SAE 100R1

HOSE, 1/4" ID 100R1 43"

2шт.

8

BN55183

HOSE ASSY.

1/4 x 23 100R1

4шт.
